WIMBA Go - Measurements

Learn how to take accurate measurements for selecting the appropriate orthosis size, ensuring optimal fit and comfort for your patients.

At WIMBA Go, we’re growing to meet your needs. By collaborating with exceptional specialists who trust our orthoses as part of their treatment and rehabilitation plans, we’ve optimized our processes to develop products faster and with significantly less data.

Thanks to these advancements, we can now create a personalized orthosis using just a few measurements and two photos of your patient's limb.

WIMBA Go Orthoses are available for:

  • Wrist joint (Carpus)
wimba carpal orthosis
  • Ankle joint (Tarsus)
wimba tarsal orthosis

WIMBA Go Carpus Orthoses come in three sizes:

  • Standard
  • Mini
  • Nano


WIMBA Go Tarsus Orthoses come in two sizes:

  • Standard
  • Mini


How do I know which size fits my patient?

Measurement

Standard

Mini

Nano

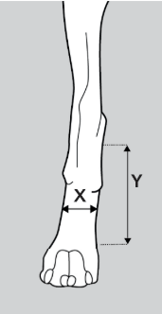

Distance from the middle of the joint to just proximal of the lateral/palpable metatarsal/metacarpal heads  (Y)

>5.35 cm

<5.35 cm

>3.60 cm

<3.60 cm

>2.75 cm

Minimum circumference (X)

8.5 cm

6 cm

4.5 cm



    NOTE: Distance below the joint (Y) is based on the information where the distal end of the lowest strap will land with reference to the center of the hinge + 0.6 cm for insert:



    Where the distal end of the lowest strap will land with reference to the center of the hinge

    Standard:

    Mini:

    Nano:

    4.750 cm

    3.000 cm

    2.125 cm



    What Will Be Needed to Take Measurements?

    Everything you need for measurements can be easily purchased anywhere in the world. Please prepare the following:

    wimba measuring toolsAdditionally, have your phone ready to take photos and download the relevant measurement cards.


      Measurement Cards

      Download the appropriate measurement card for your patient’s needs:



      Photos for Validation

      To ensure proper fitting of the orthosis, attach two clear photos of the limb where the device will be fitted. The photos must be of high quality, with the limb in the center of the image. It is essential that the dog naturally places weight on the paw during the photos.

      Include photos taken:

      • From the front
      • From the side

      Refer to the examples below for proper positioning:

      carpal (1) (1)   tarsal (1) (1)
