WIMBA Wrist Orthosis







READ BEFORE USE:

  1. Read the entire product manual before use.
  2. WIMBA products are medical devices available only from authorized partners.
  3. The orthosis is one of the elements of an individual treatment plan - follow the recommendations of the veterinarian or physiotherapist ordering the use of the orthosis in terms of time, frequency and method of use.
  4. The orthosis is not intended for 24/7 use.
  5. Never leave your pet unattended with the orthosis in place.
  6. We do not recommend using the orthosis on affected skin.
  7. Prolonged exposure to very low and high temperatures, washing in a washing machine, drying with a dryer, modifying or interfering in any way with the structural integrity of the orthosis is prohibited.
  8. The dog is a living animal. The process of getting used to wearing medical supplies may be different for each dog. We recommend using positive methods such as desensitization, counter-conditioning and medical training using positive reinforcement.
  9. If you have any doubts about the use of the product or if the device is damaged, please contact your seller.
  10. The full terms of the warranty are described in the warranty card included with the product.

Table of Contents


Content of the Box

Assembled orthosis with token set and suggested inserts
Additional token sets (if ordered)
Spare mounting pins
Extras *

* These items are dependent from order to order. Please refer to the WIMBA App for order details

Description of the Orthosis Components

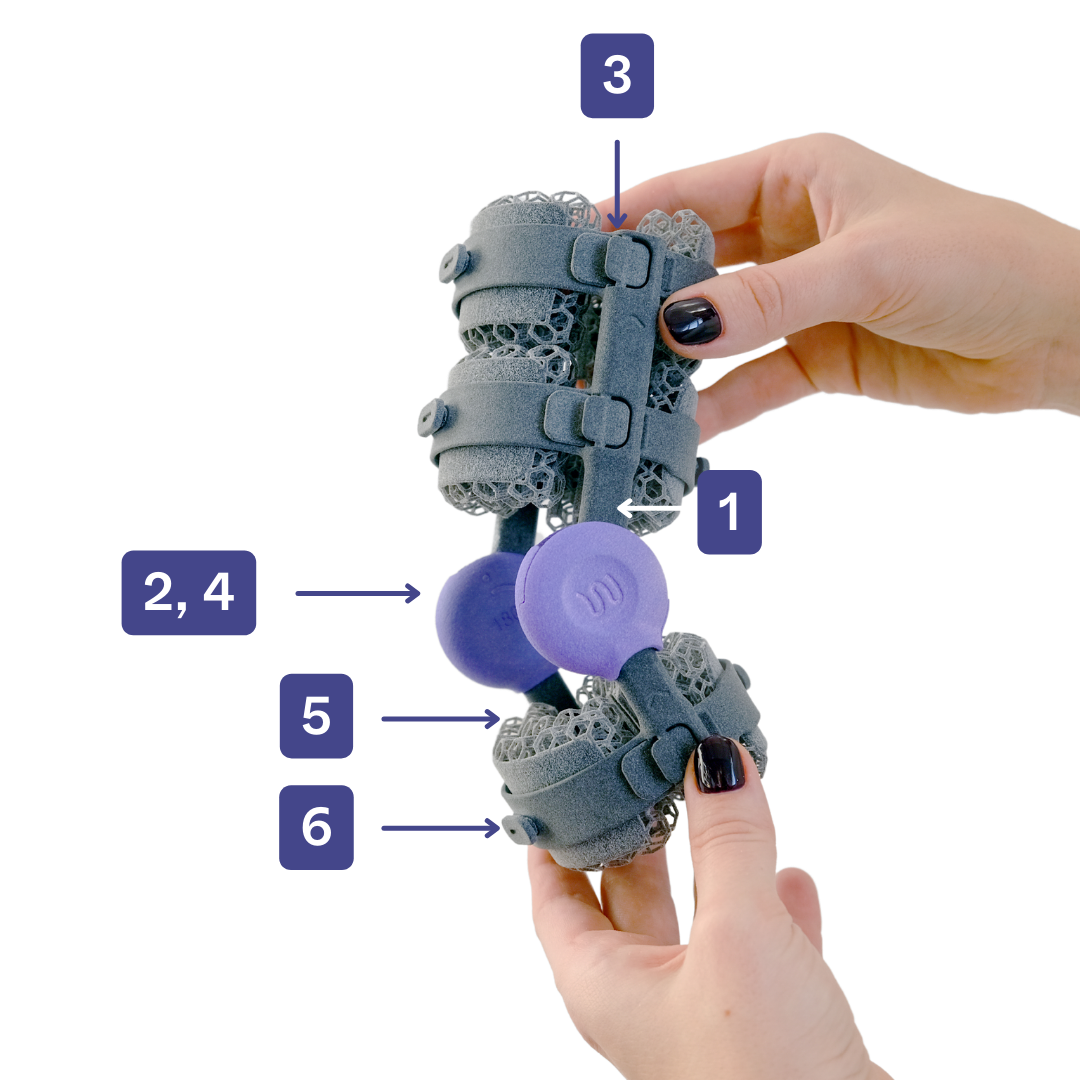

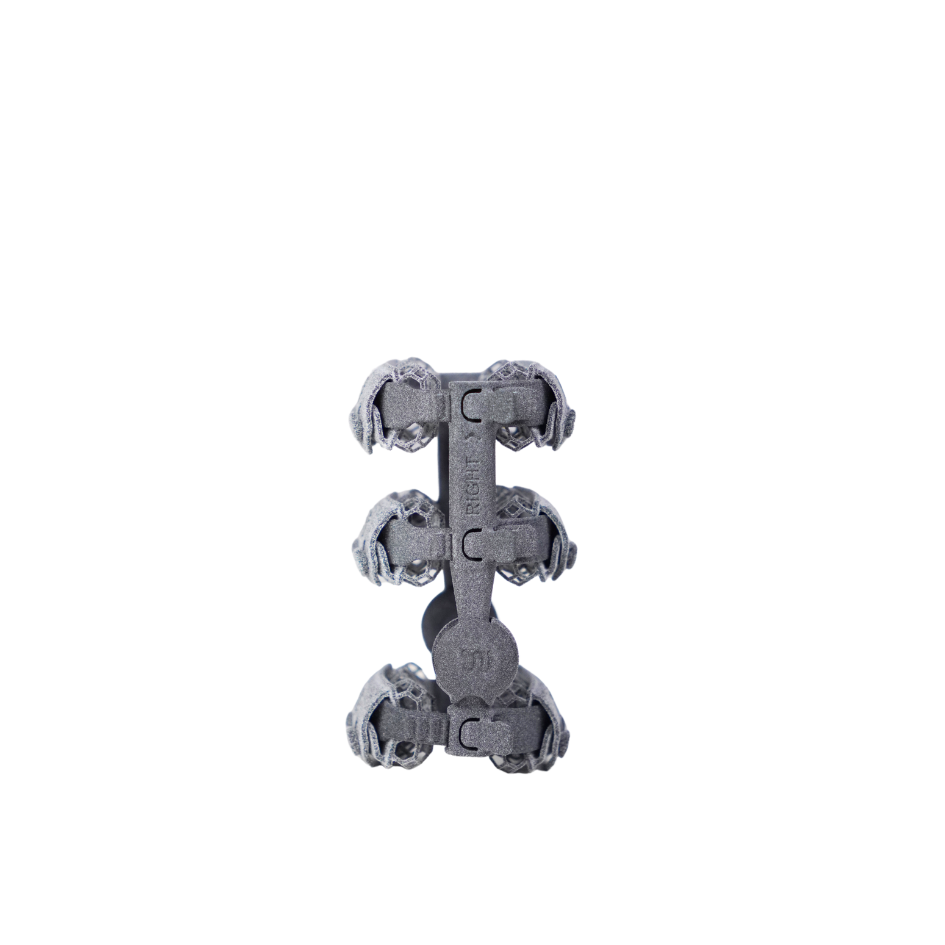

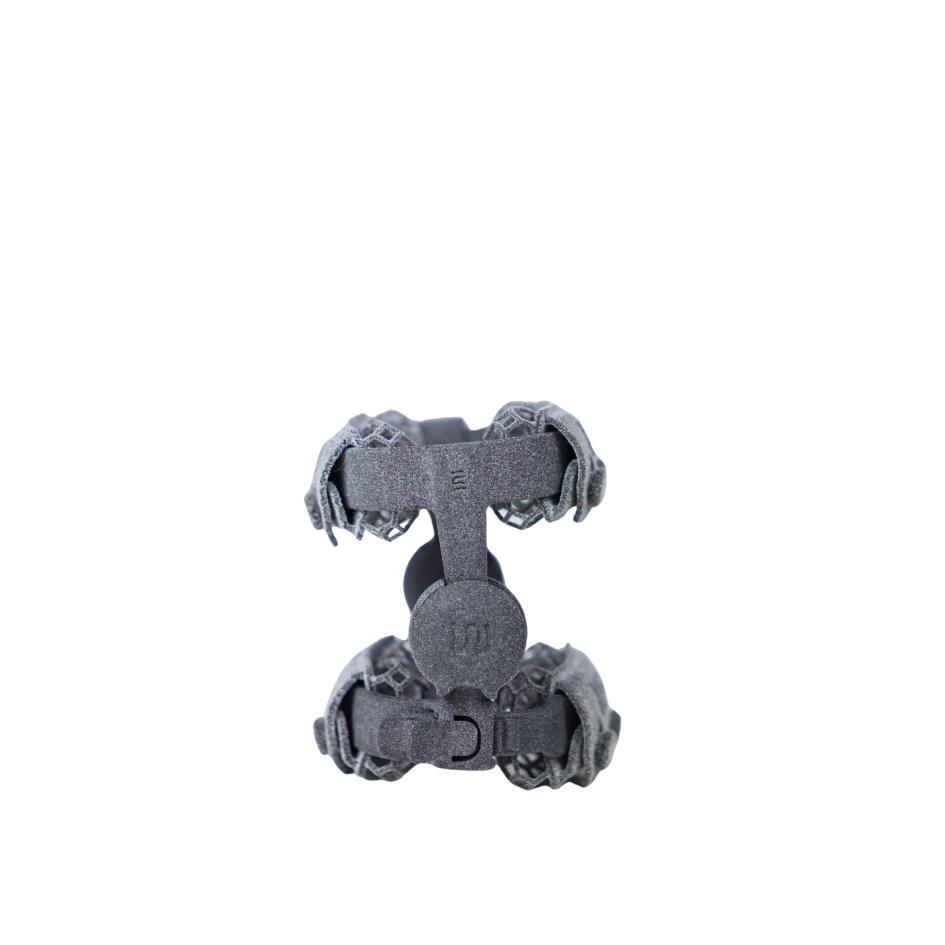

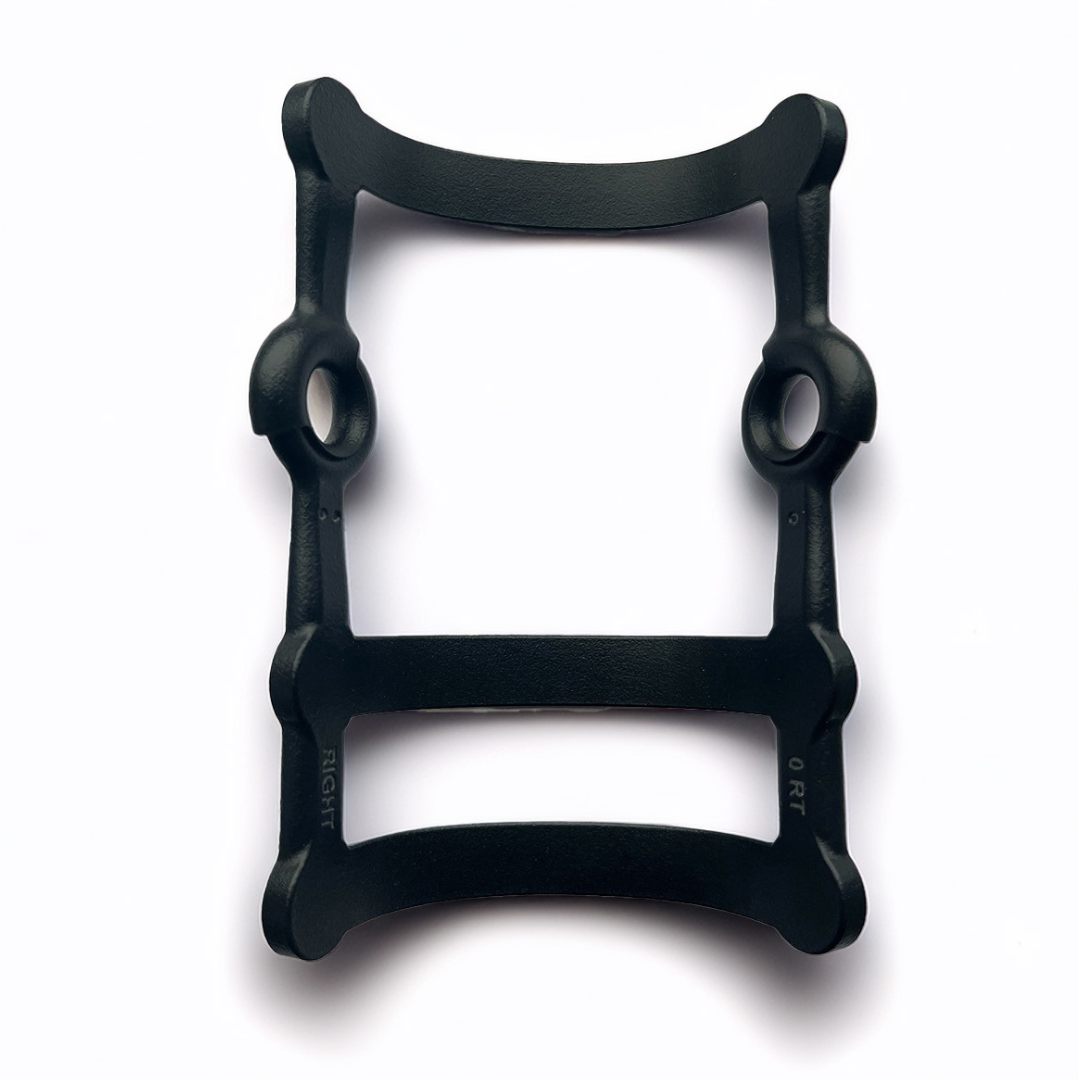

The WIMBA wrist orthosis consists of an (1) axis connected to (2) hinges and (3) snap-fastening straps, (4) WIMBA tokens- (5) inserts (spacer cushions)  and  (6) pins for attaching the inserts.

Modular Parts

Fastening Straps with Fasteners

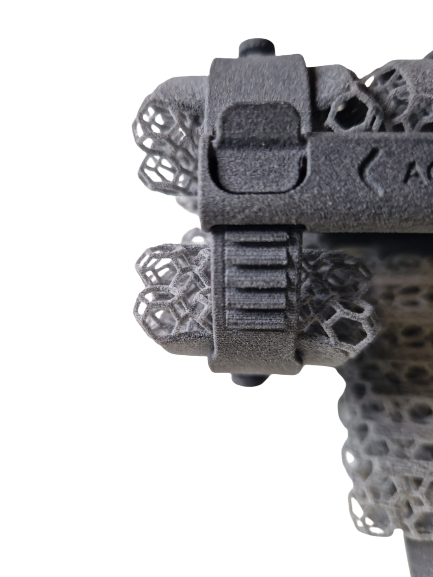

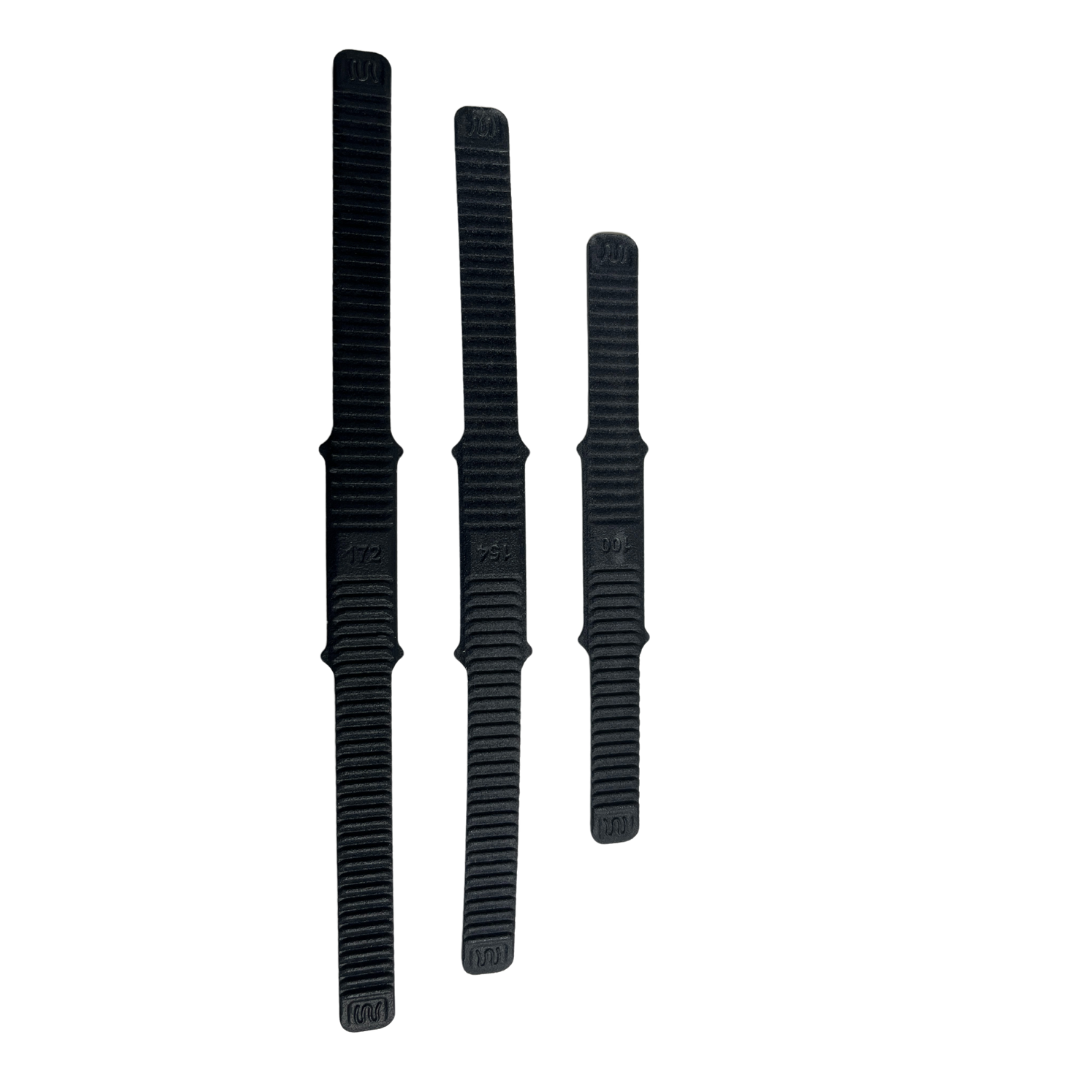

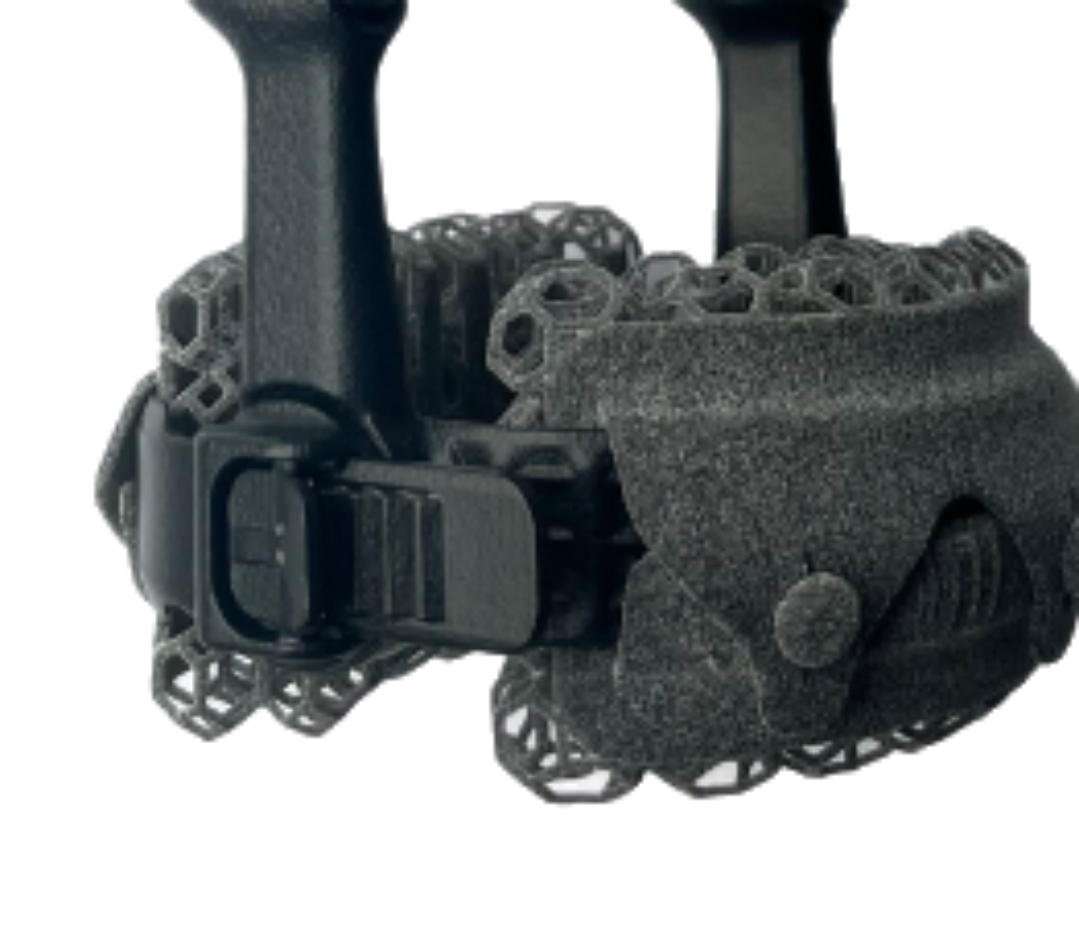

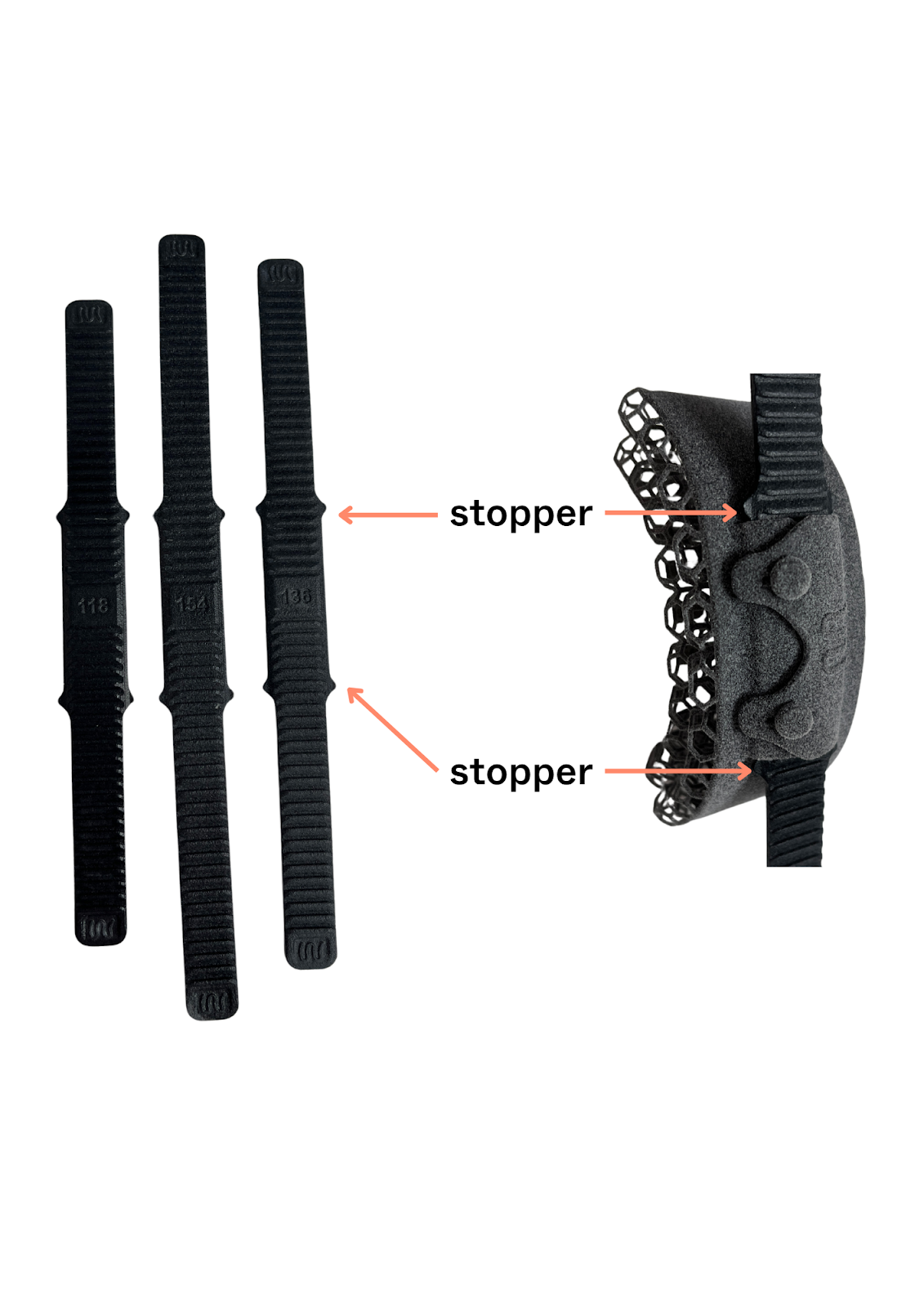

WIMBA orthoses are fastened with straps that utilize a snap-fit system. The straps are adjustable, allowing for ease of placement on the animal’s limb as well as a better overall fit. Each strap has a pawl mechanism, preventing them from popping up by themselves.

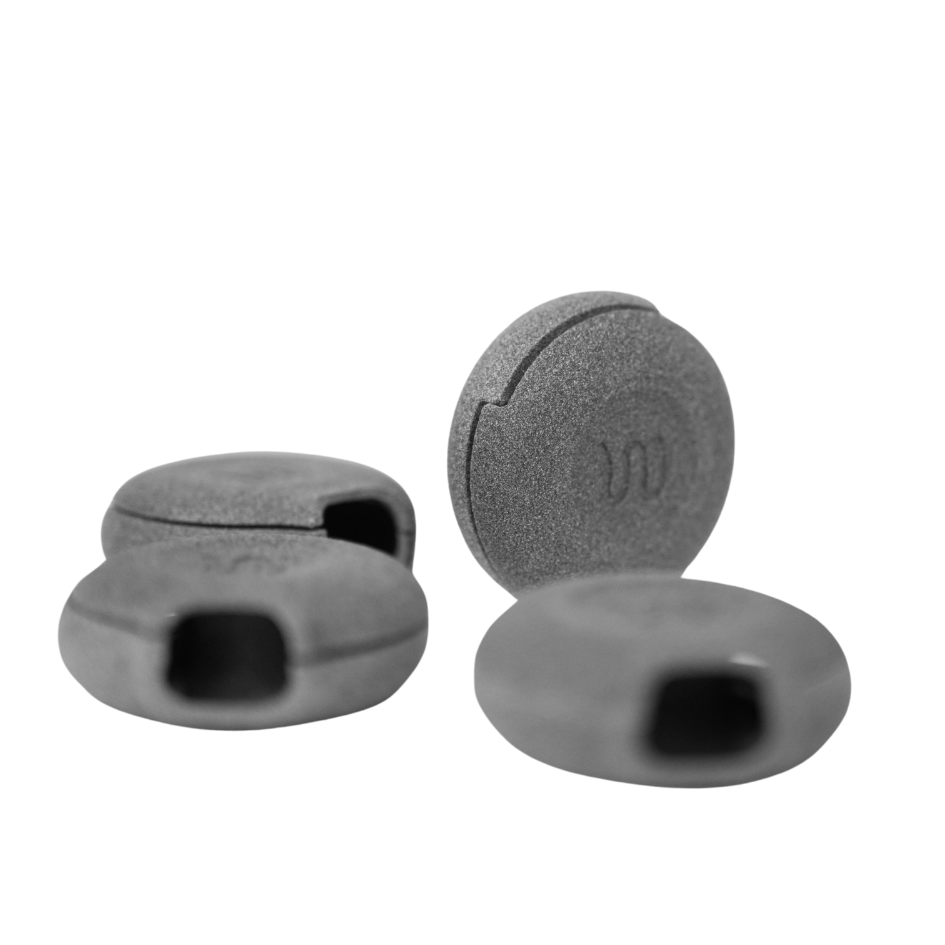

Tokens

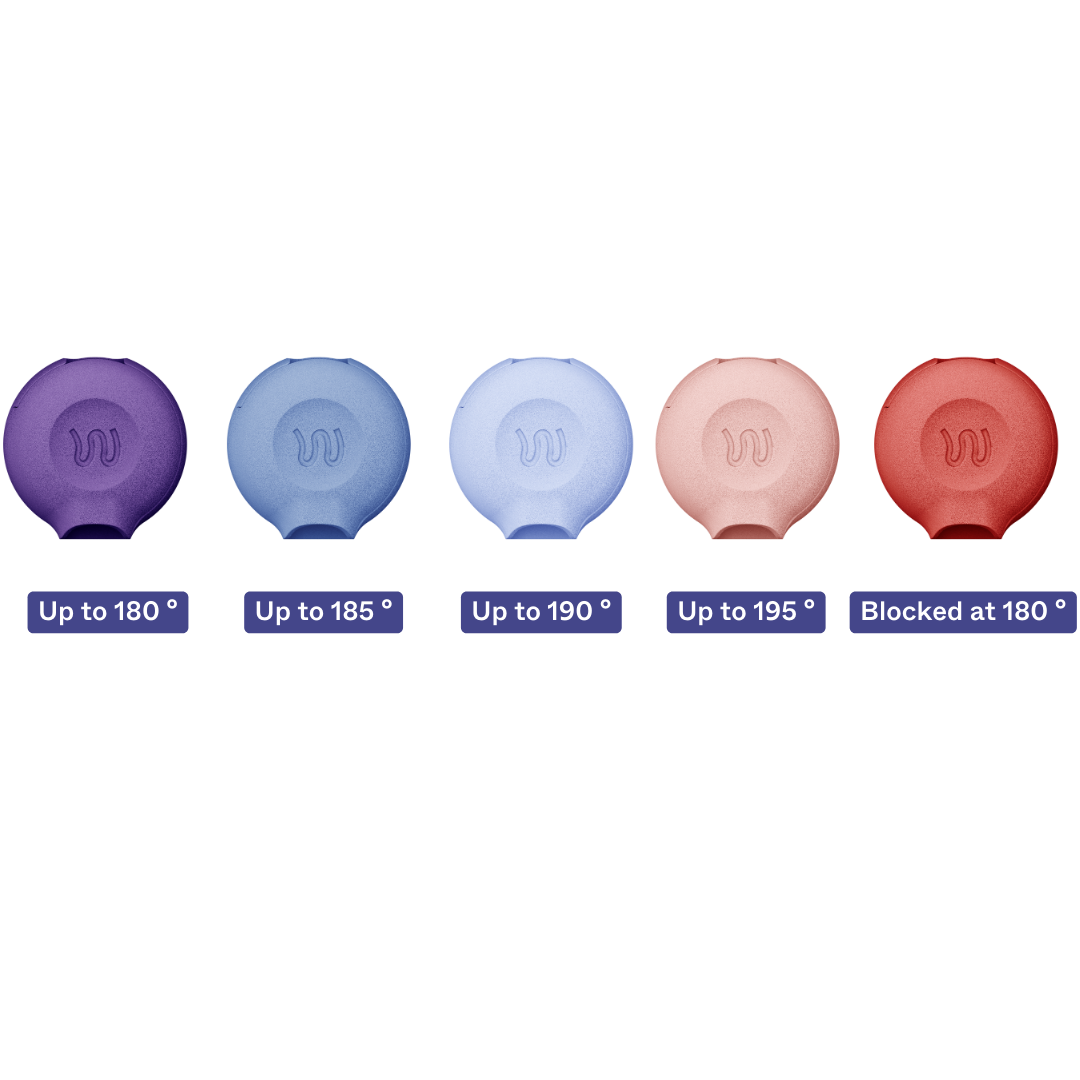

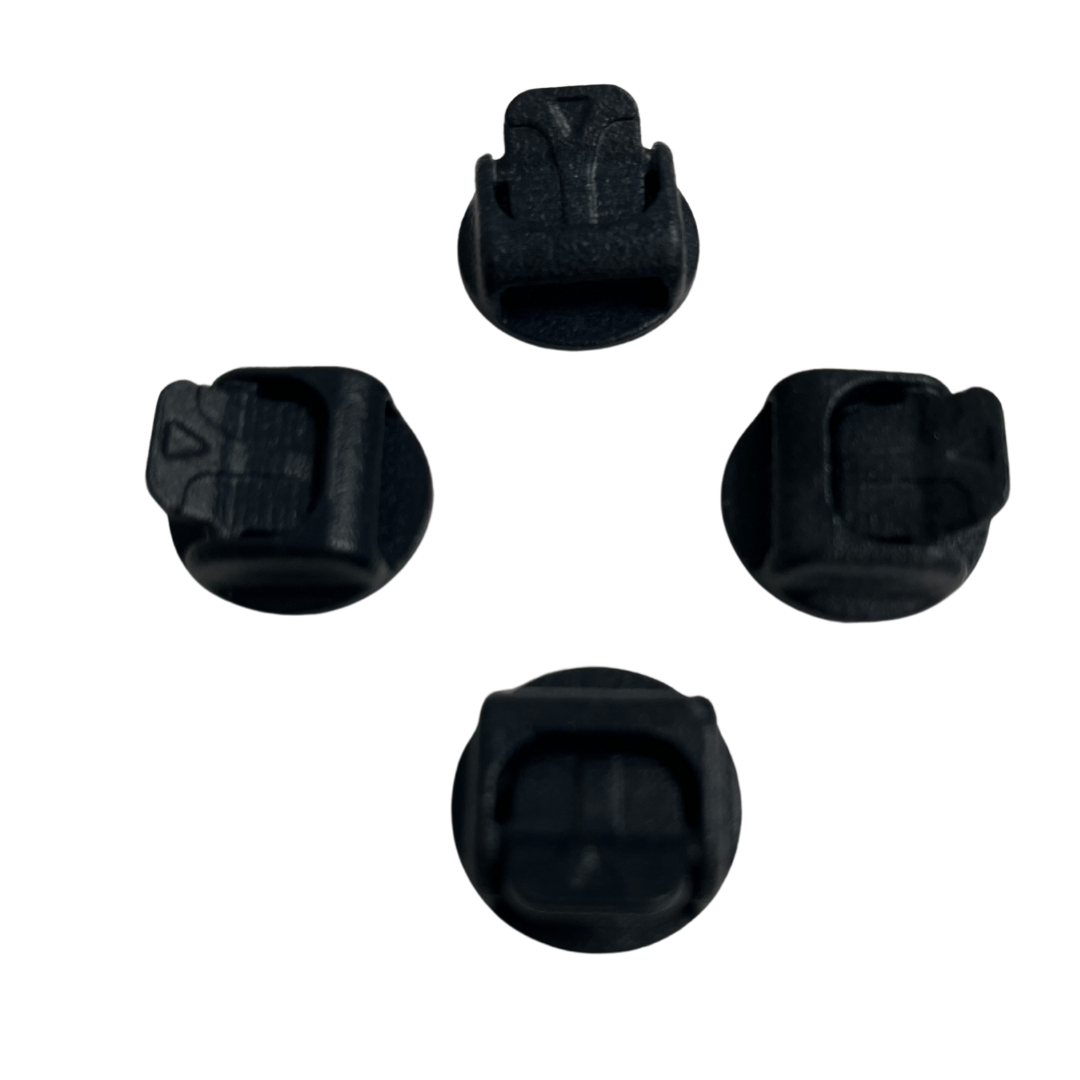

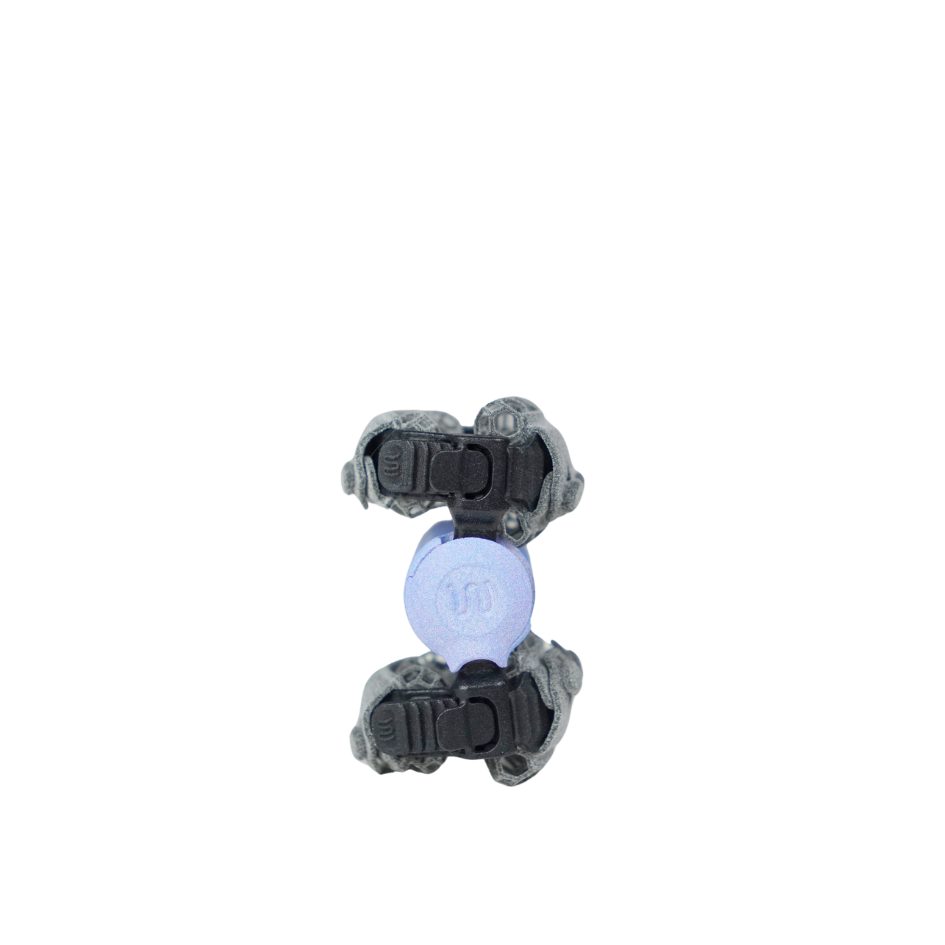

The WimbaTOKEN is a circular element placed in the centre of the orthosis hinge. The WimbaTOKEN is used both to completely stiffen the joint in the selected flexion or extension angle and to treat the dysfunction by controlling the range of motion in the joint.

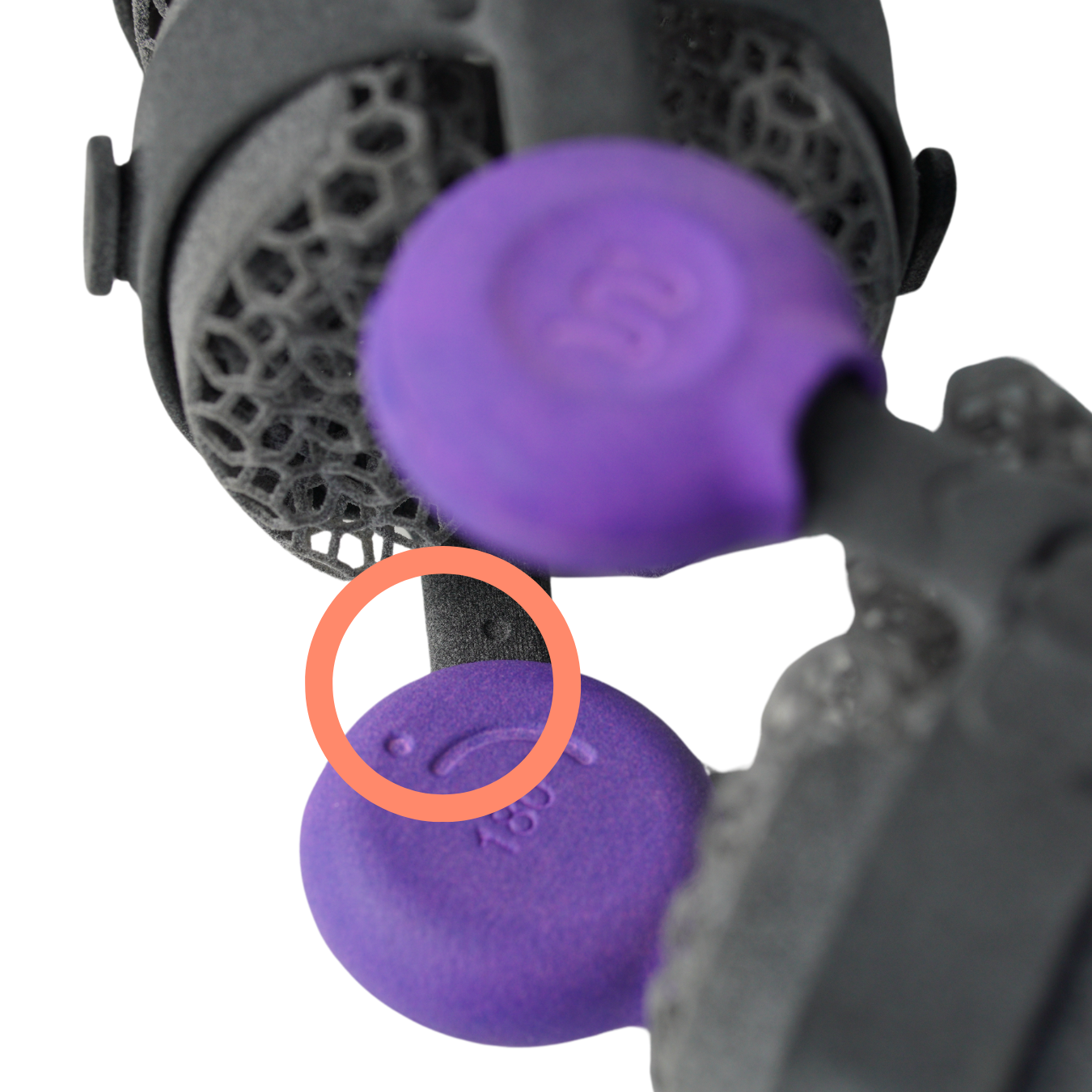

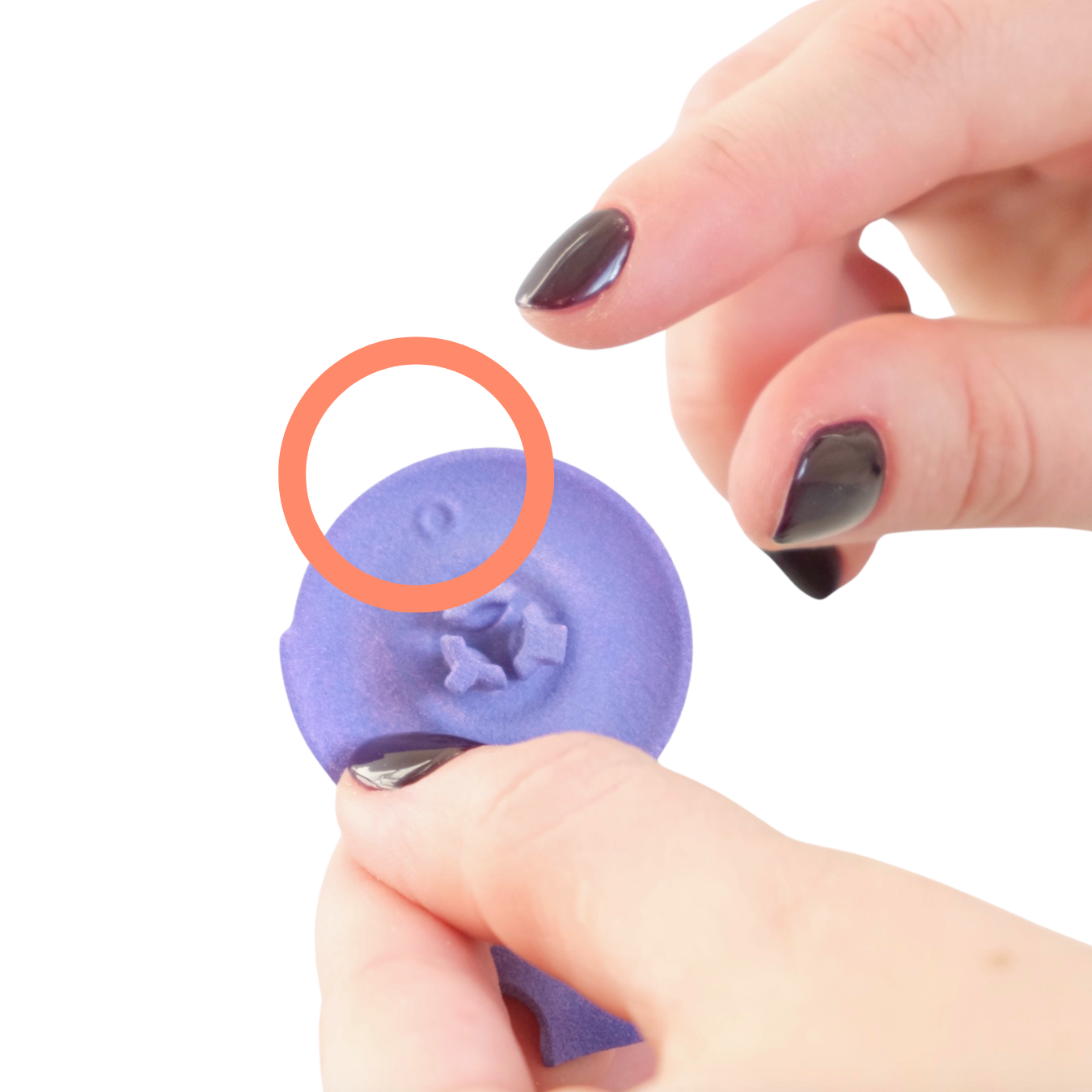

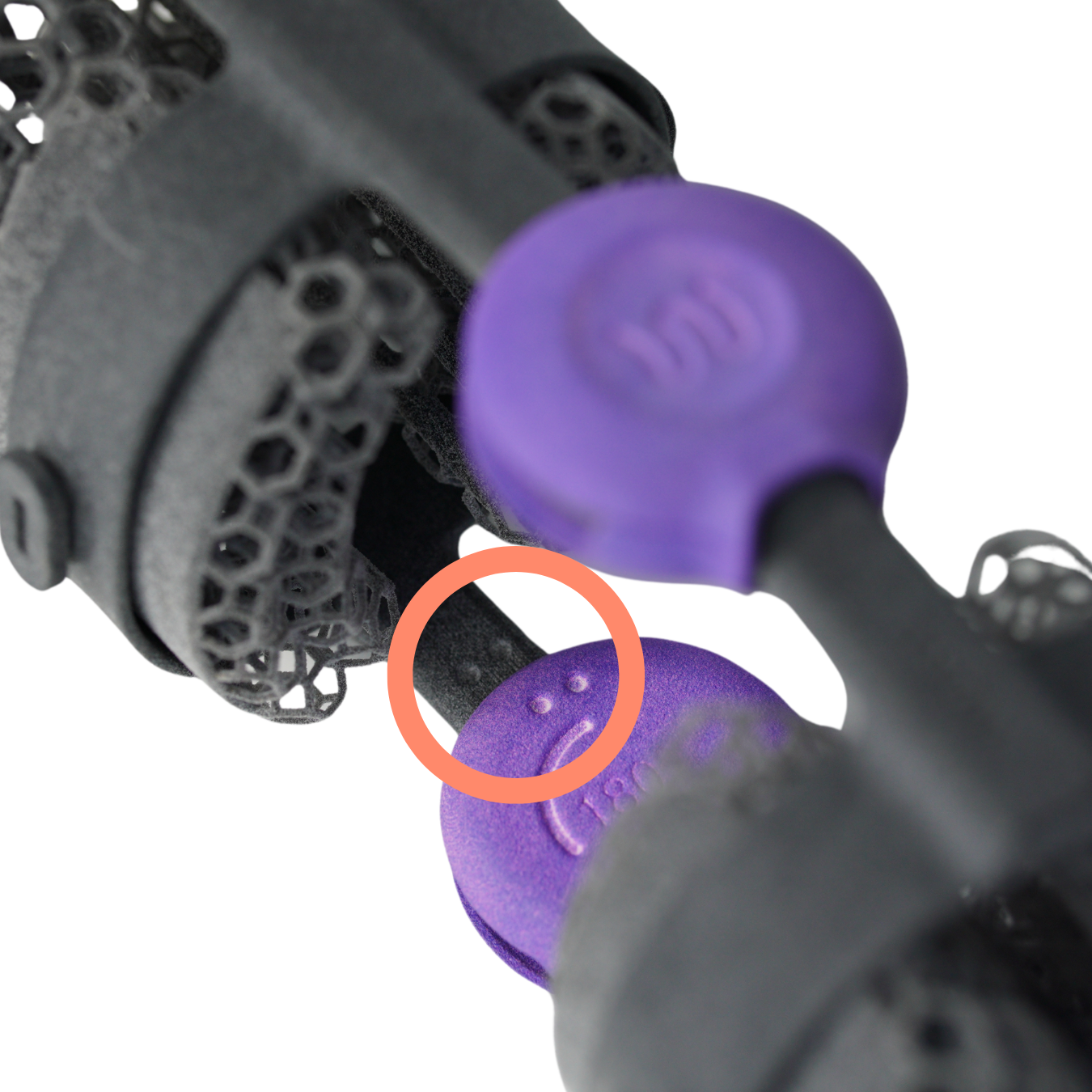

Look for dot markings on the inner axes of the orthosis and the tokens.

Fasten the tokens according to the markings:

  • One dot on the orthosis should align with the token that has one dot.

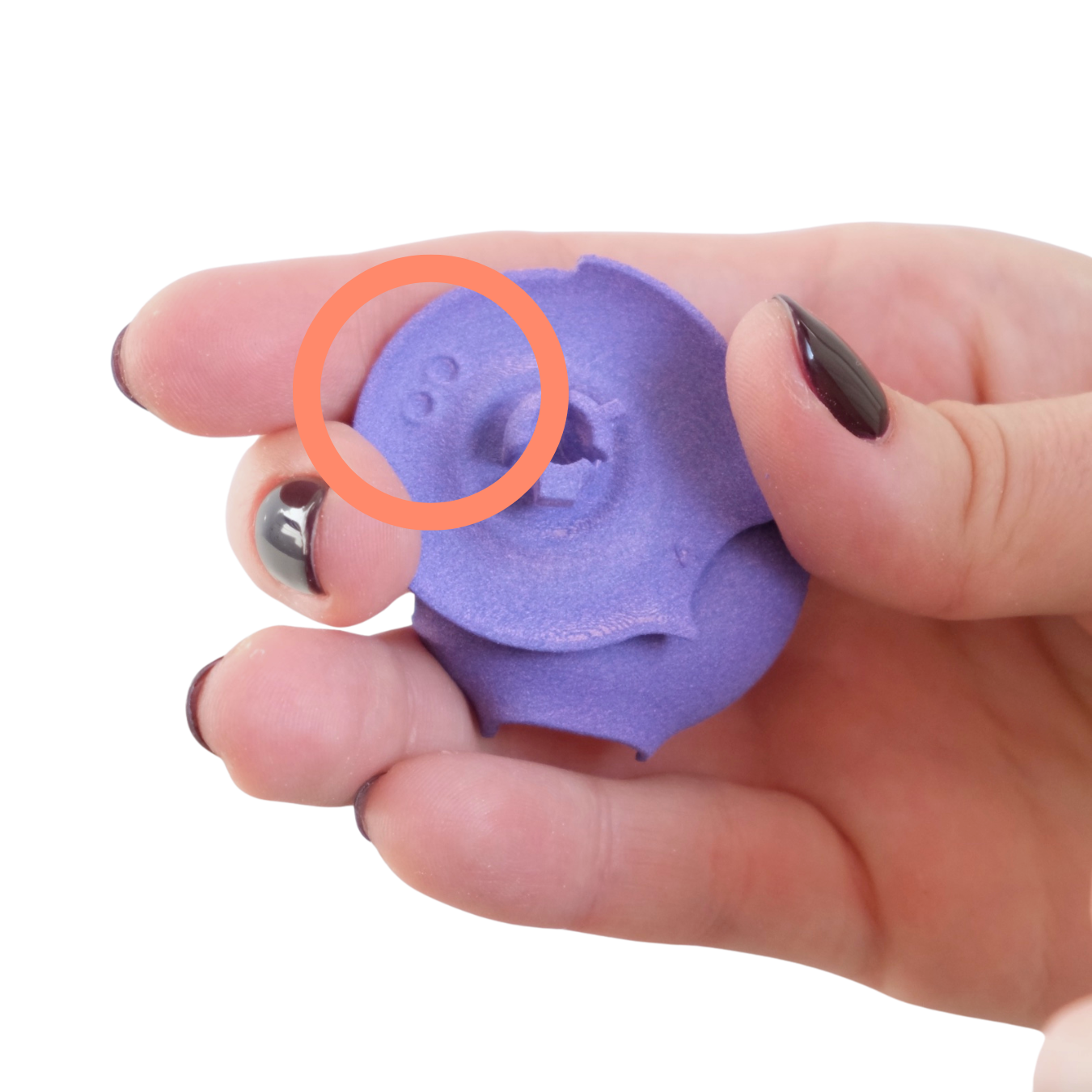

  • Similarly, two dots on the orthosis should match two dots on the token.

To exchange the tokens:

  1. Open the tokens you want to replace.
  2. Look for dot markings on the inner axes of the orthosis and the tokens.
  3. Fasten the new selected tokens according to the markings.
  4. Parts of tokens with dots should be clipped in from the inside of the hinges.
  5. Parts of tokens with a "W" should be fastened from the outside.

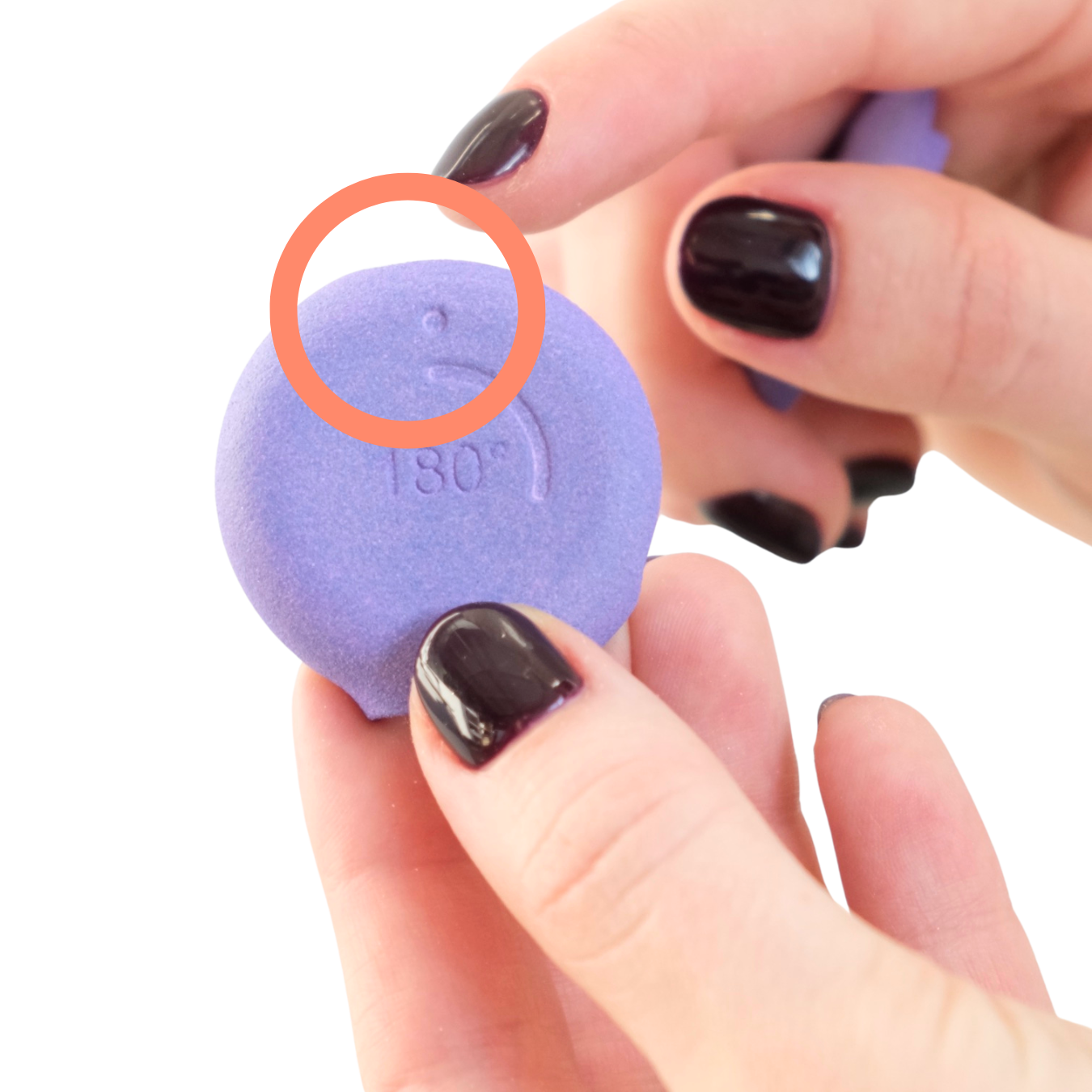

Token with One Dot

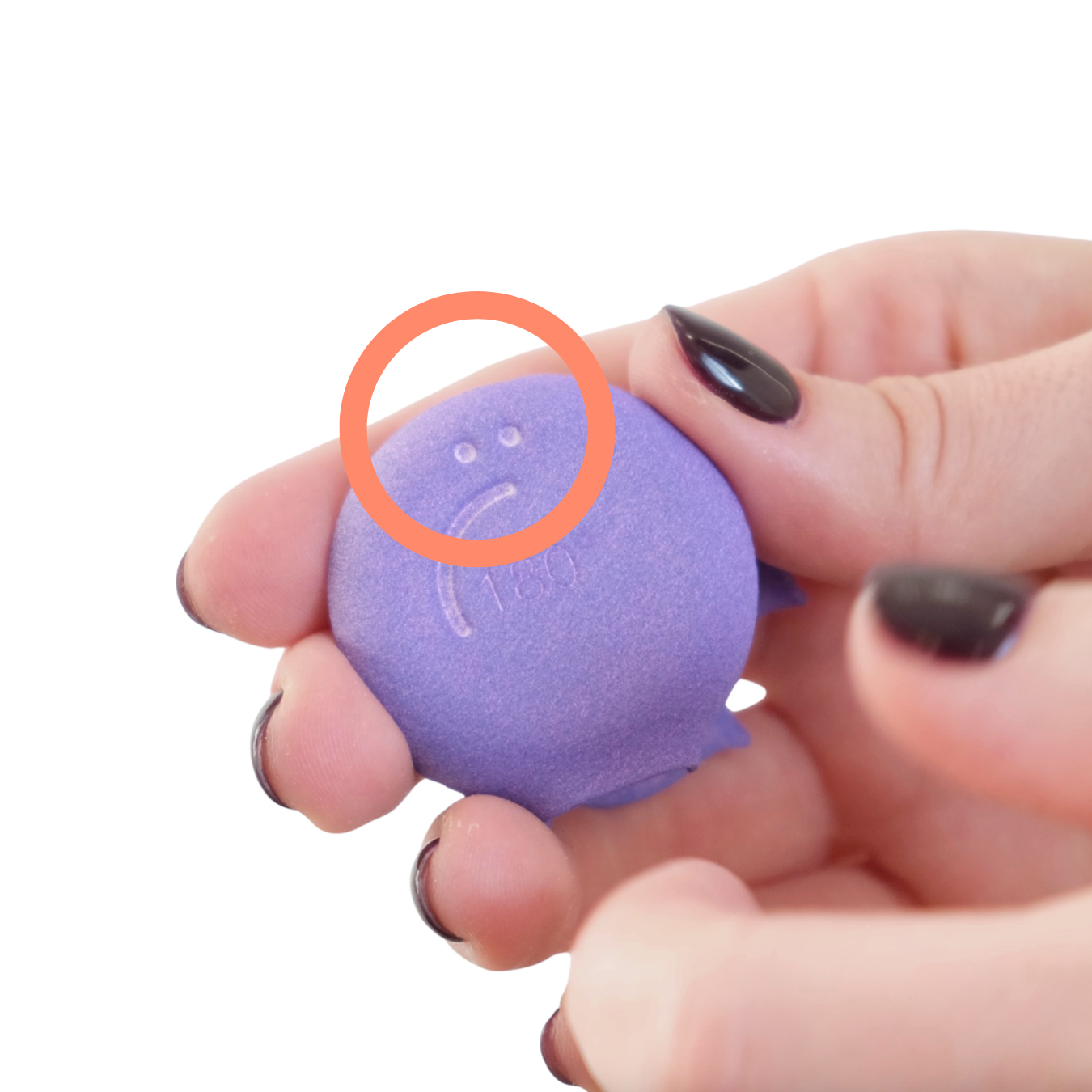

Token with Two Dots

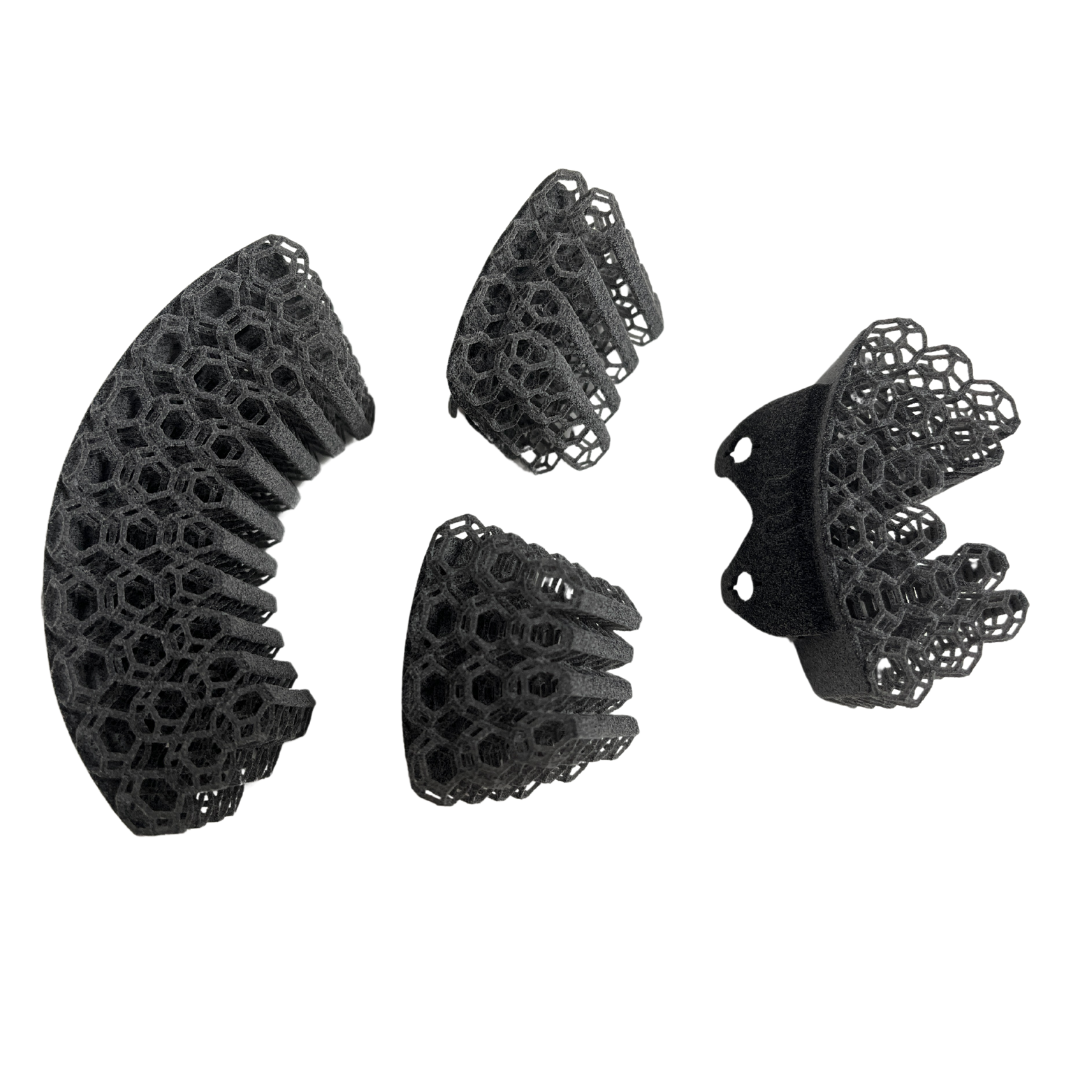

Inserts

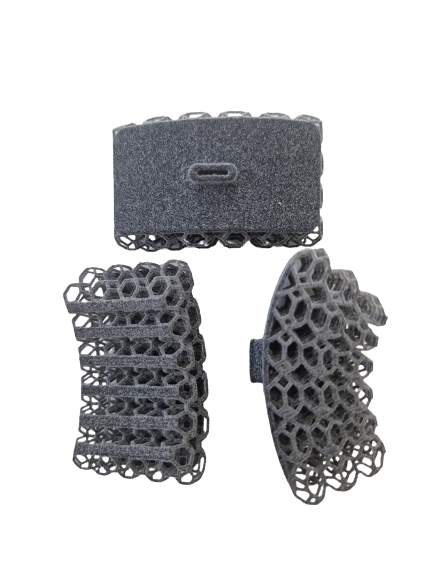

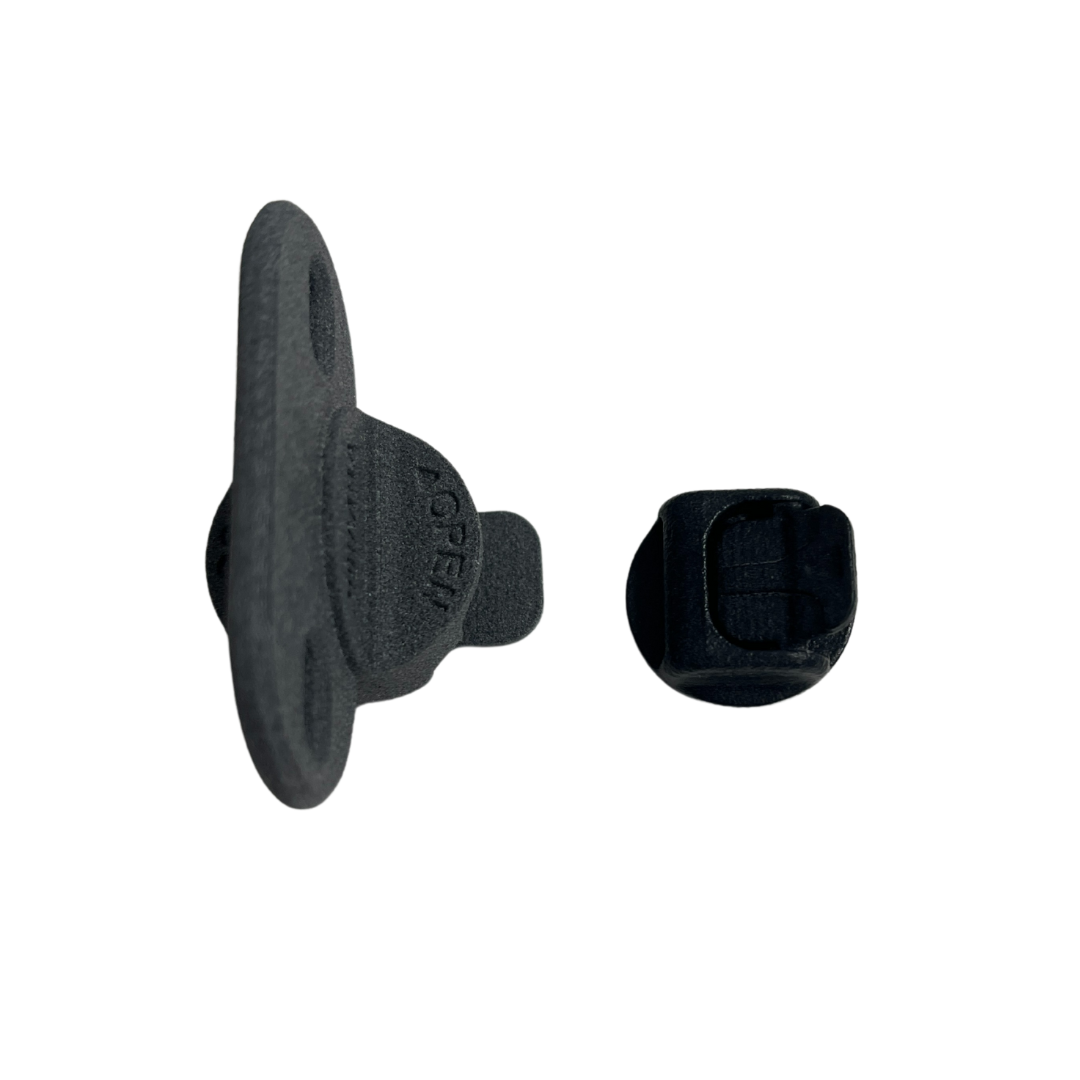

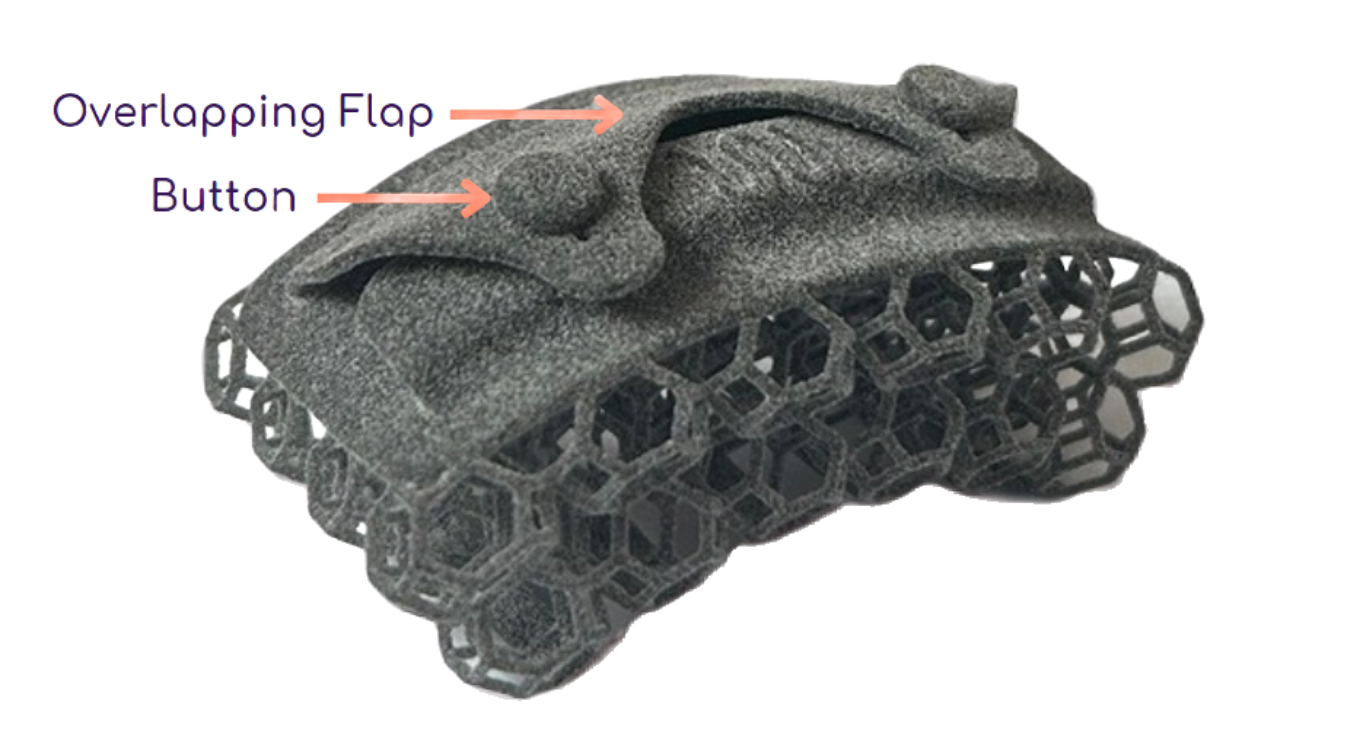

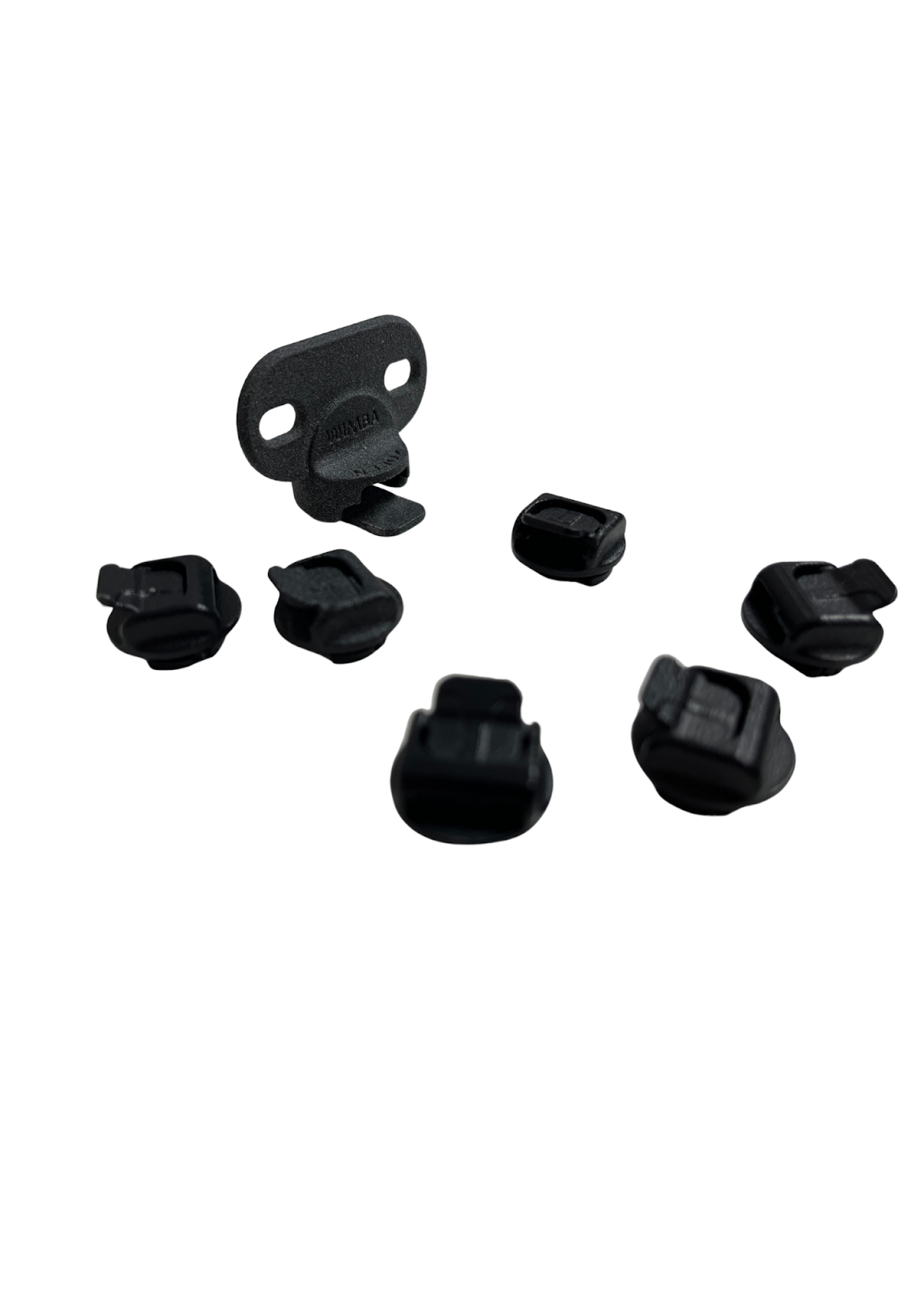

The whole product is complemented by sponge-like spacer cushions that make up the braces inserts. These allow the orthosis to be placed securely and comfortably on the animal’s limb. The orthosis comes with spare mounting pins in case they are lost*.

* Mini version of the product does not include mounting pins to avoid skin irritation

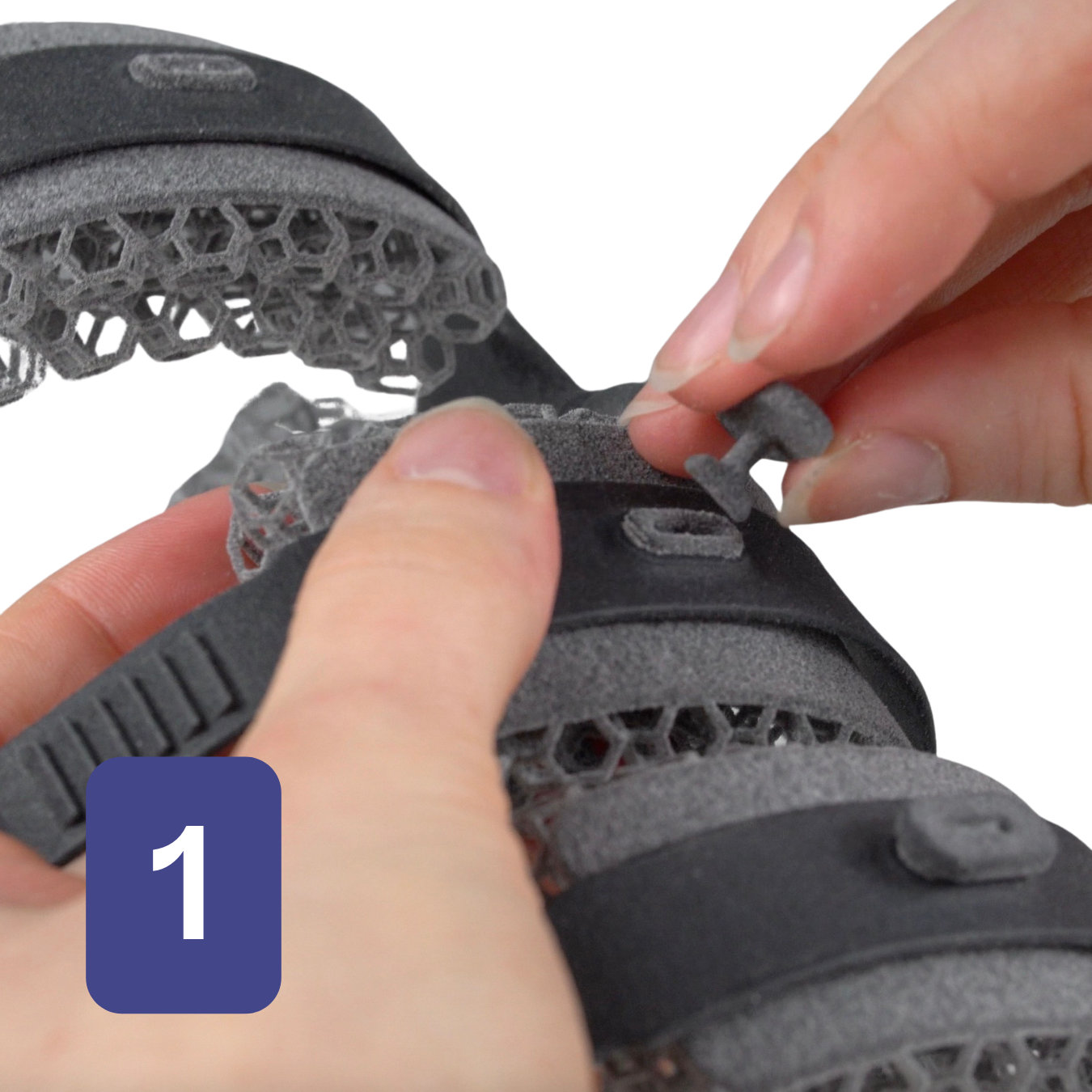

To exchange the inserts:

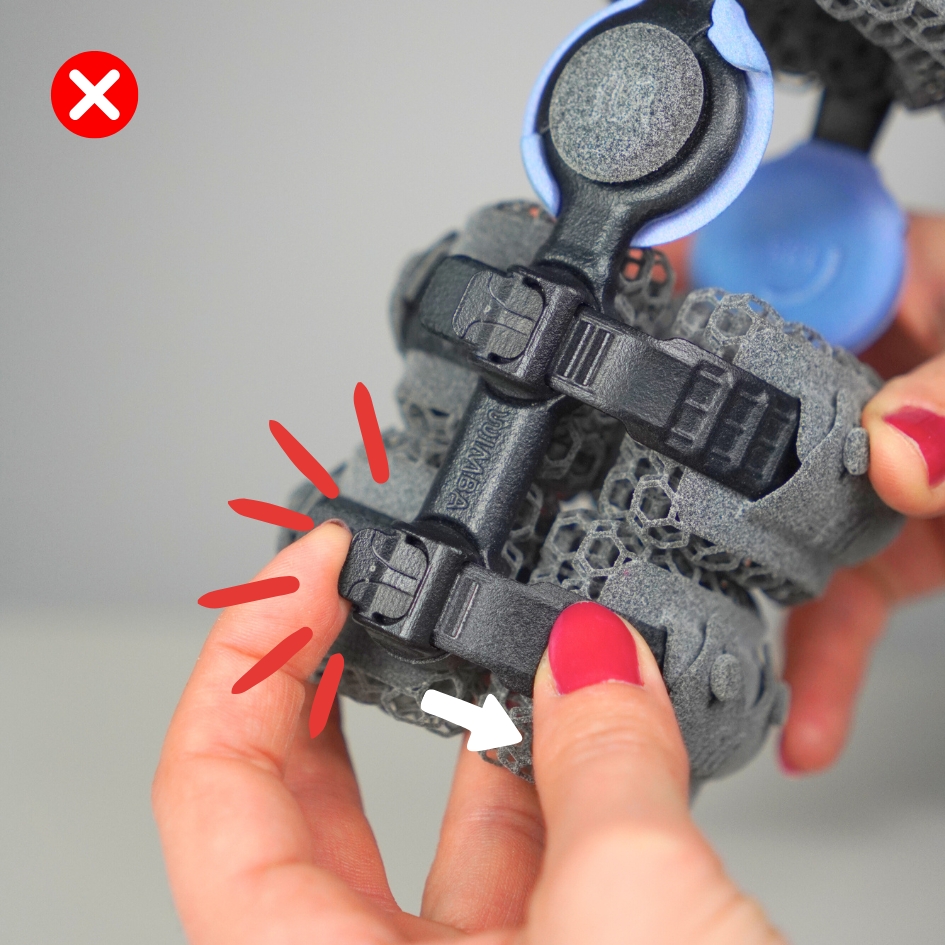

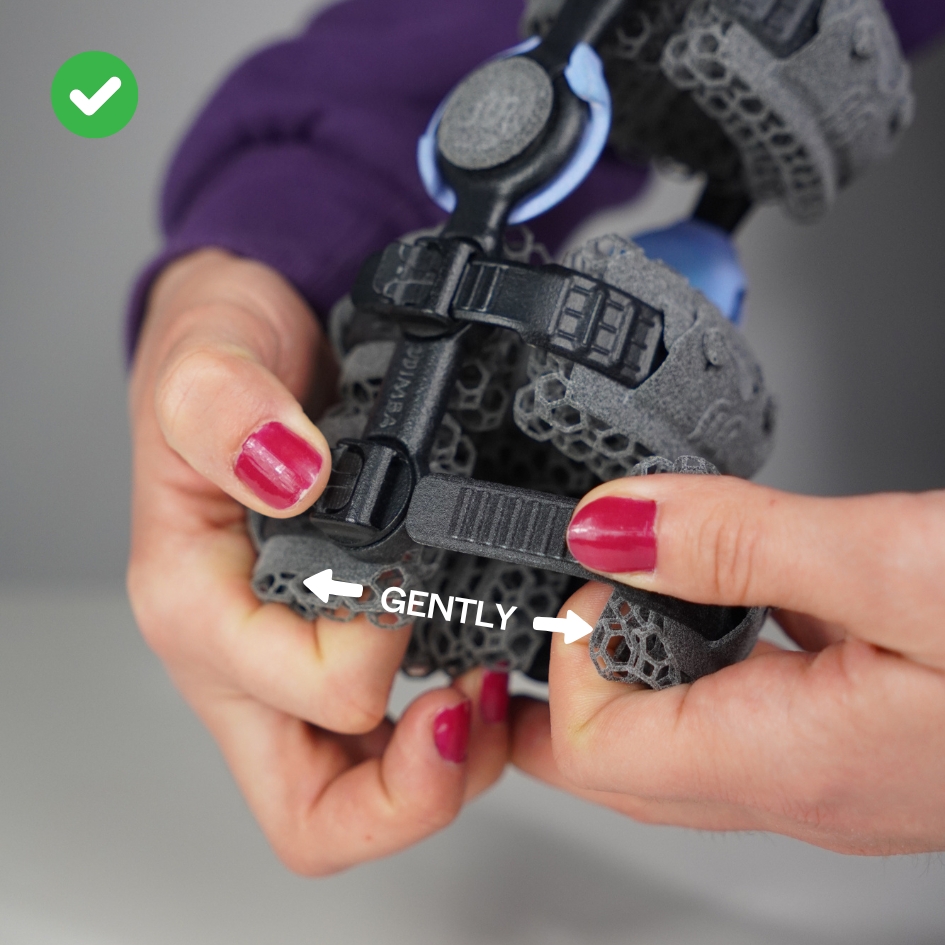

  1. Unfasten the orthosis by applying pressure to the fastening clip.

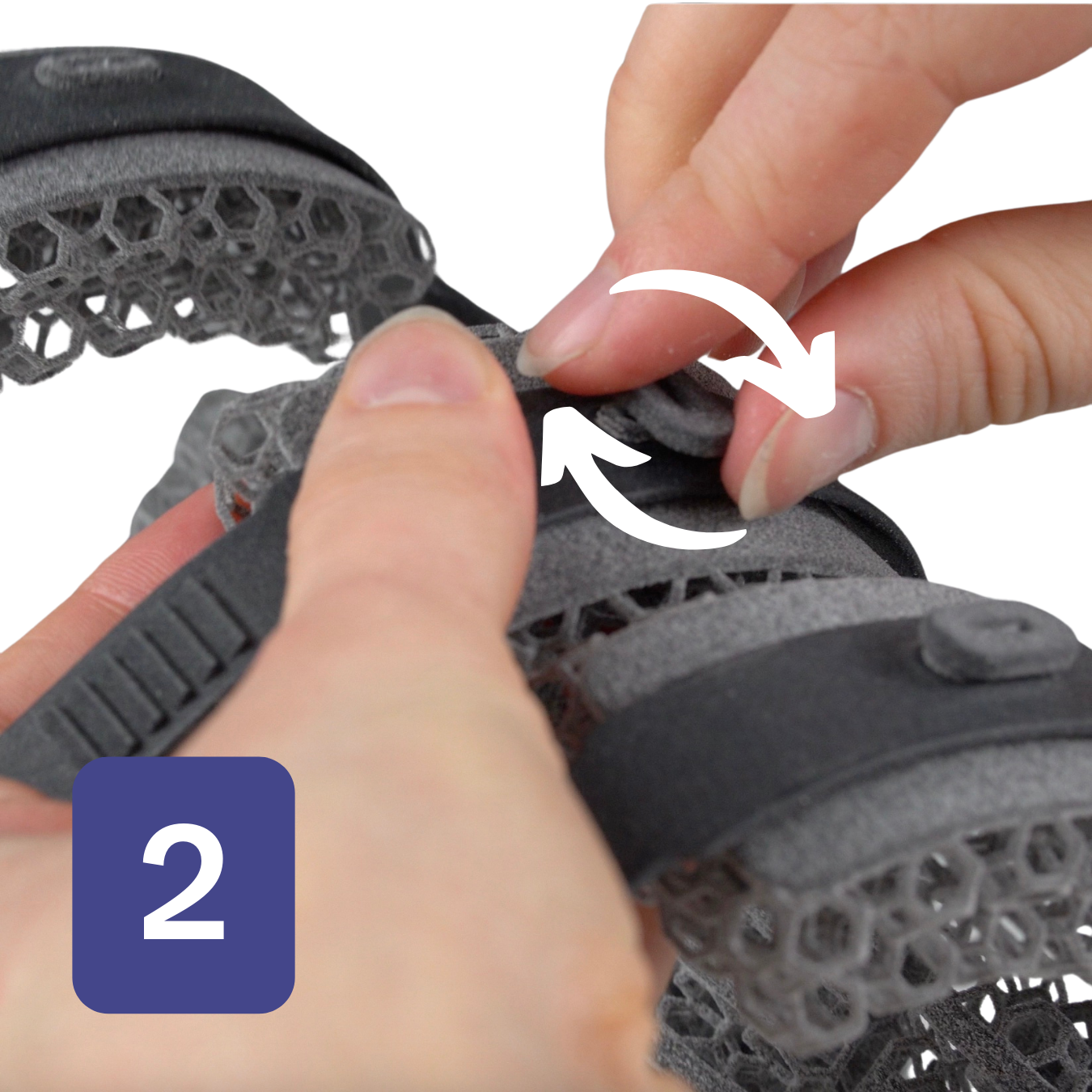

  2. Twist and pull mounting pins out of the inserts (if needed) and firmly pull on the insert to remove it from the orthosis.
  3. Clip the desired inserts into the designated places on the straps.

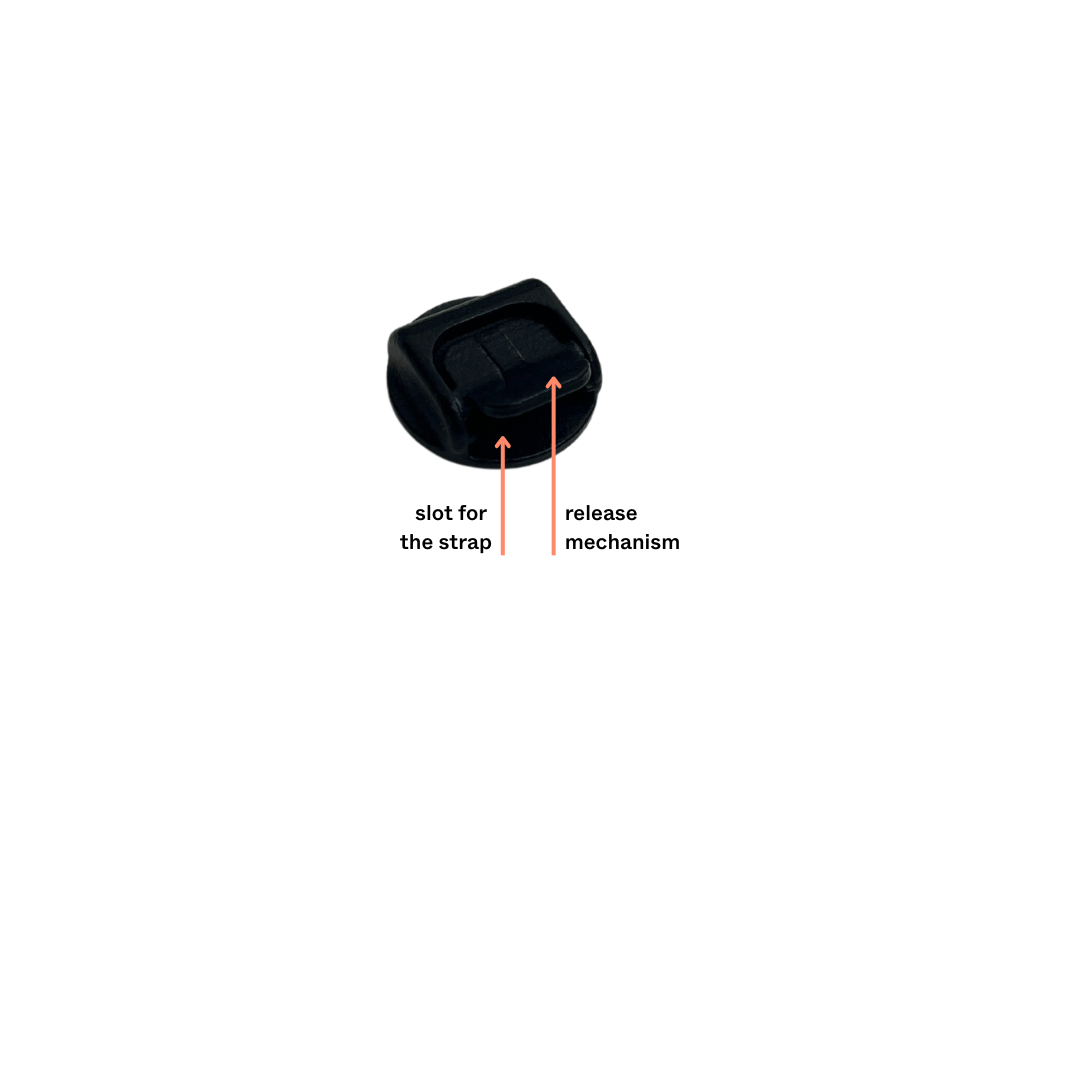

  4. From the outside, insert the mounting pin into the designated spot to prevent the inserts from falling off.
  5. Press the pin and then twist it


Note! Pins are preventing inserts from falling off. It is important NOT to use pins when using the thinnest inserts.

Orthosis Fittings





Step 1 - Prepare the Paw

Ensure it is clean and dry before applying the orthosis.

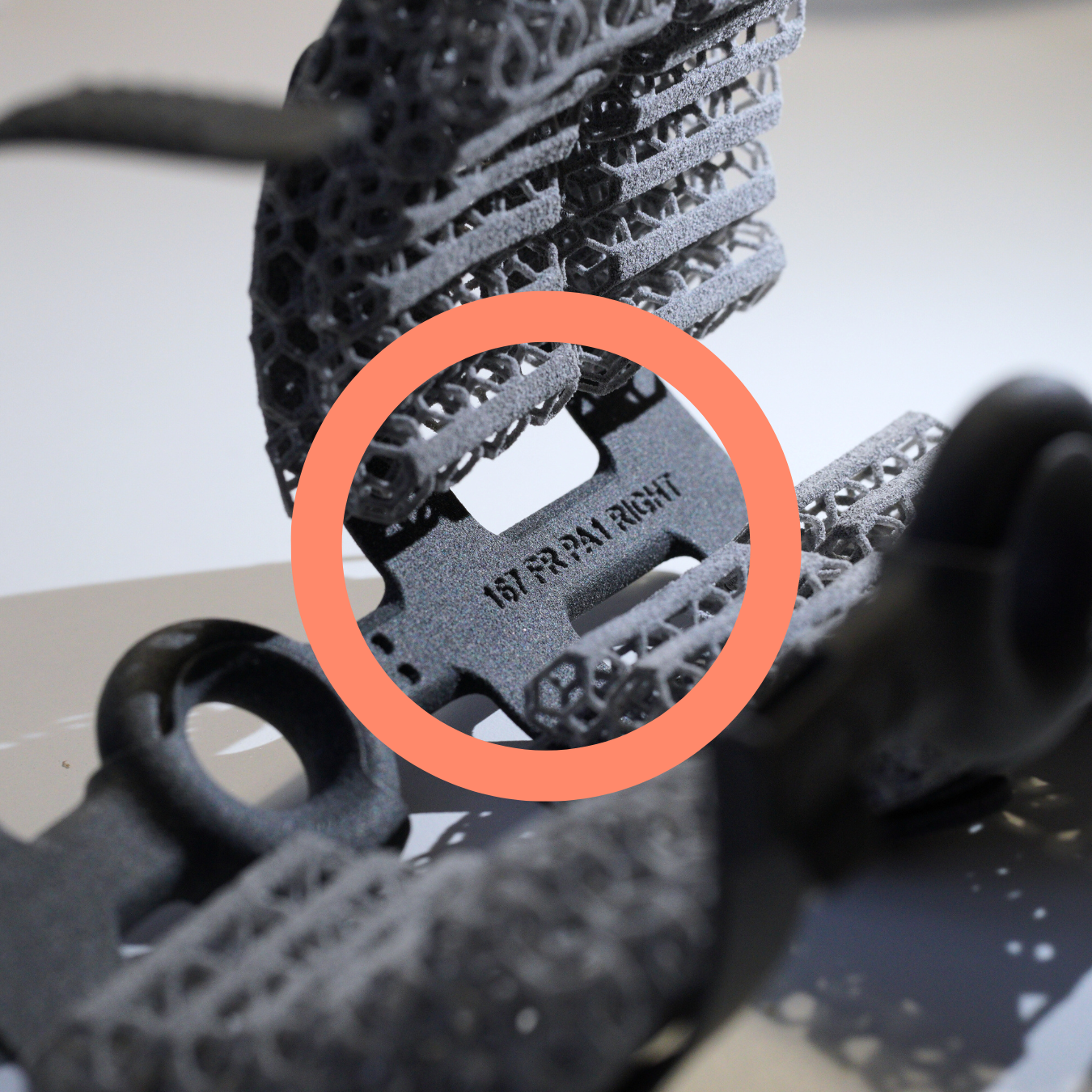

Locate the labels inside the brace that  indicate Right + Left/Back + Front to ensure the brace is being placed on the correct limb:

  • FL - front left,
  • FR - front right.

Step 2 - Positioning the Orthosis

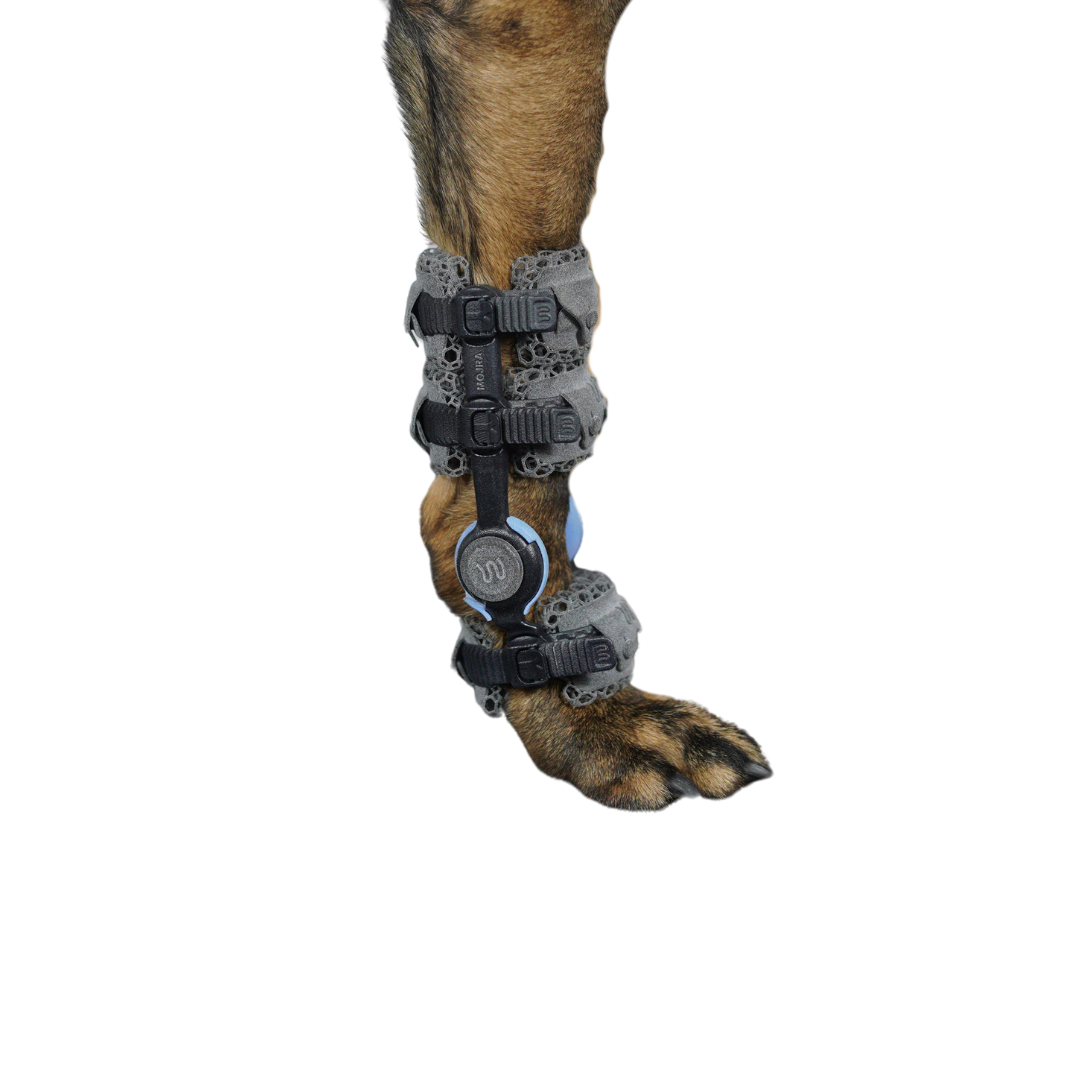

Place the brace over the dog’s limb, ensuring correct orientation.

Fastening straps with cushions should be on the back, and the hinges on the right and left sides of the limb.

Step 3 - Fastening the Orthosis

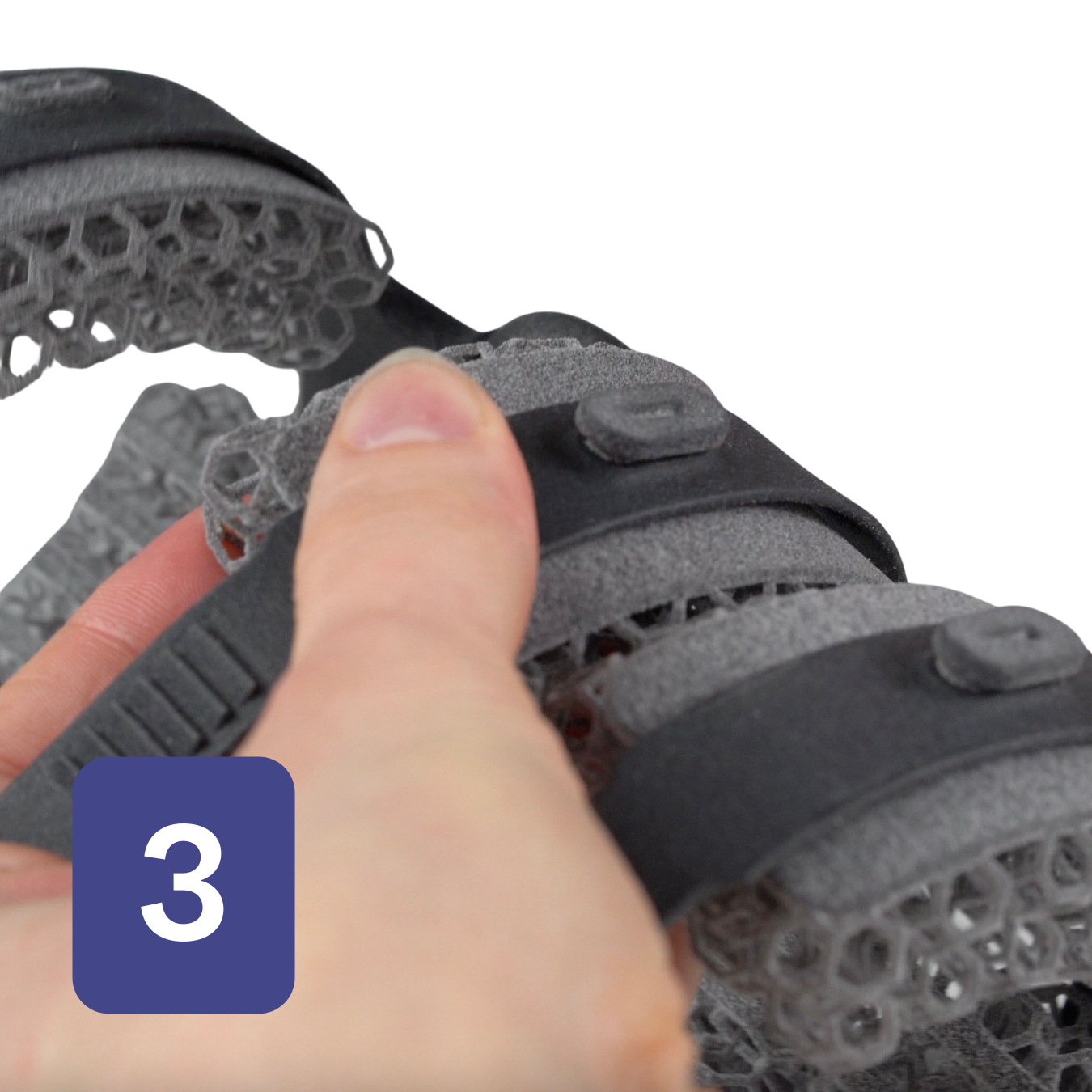

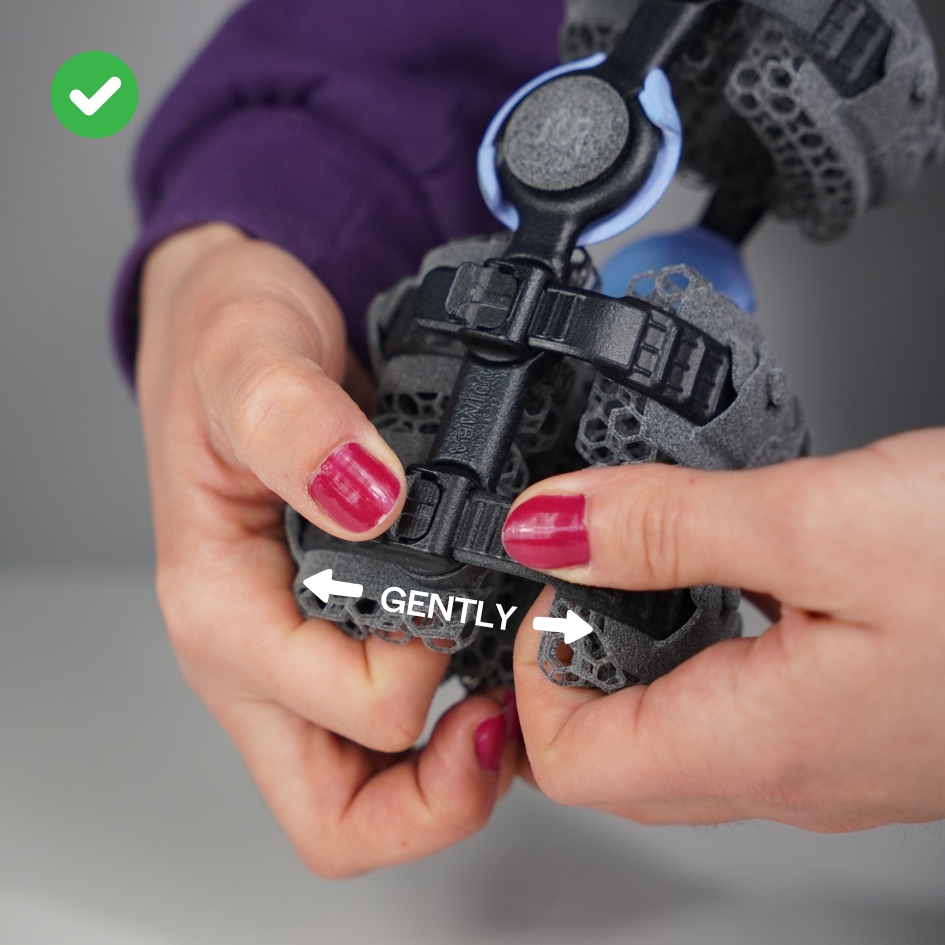

Insert the straps into the clip hole.

Fasten on a standing (or sitting) dog with the orthotic limb on the ground.

Lift the paw and bend it to ensure tokens are directly in line with the joint and there is no friction between the token and joint.

Step 4 - Ensuring Even Tightening

If the strap is fastened on both sides, ensure even tightening to avoid point loading.

Step 5 - Correct Fit

A properly fitted and used orthosis contains the following elements.

  1. The brace is in the correct position on the animal’s limb, not too high, too low, not rotated internally or externally, and tokens are directly in line with the joint.
  2. It stays in the correct place during the animal's gait, without twisting or sliding down.
  3. The brace is not overly tight and does not provoke pressure sores on the dog’s limb.
  4. No hard elements of the brace (Tokens, Brace Frame) contact the animal's limb during any phase of the gait.



Note! It is important to monitor your animal at all times to ensure these principles are followed while wearing the orthosis.

Note! It is important to monitor your animal at all times to ensure these principles are followed while wearing the orthosis.

Please remember!

If swelling or skin damage appears, remove the orthosis immediately and contact your veterinarian for better fitting tips.

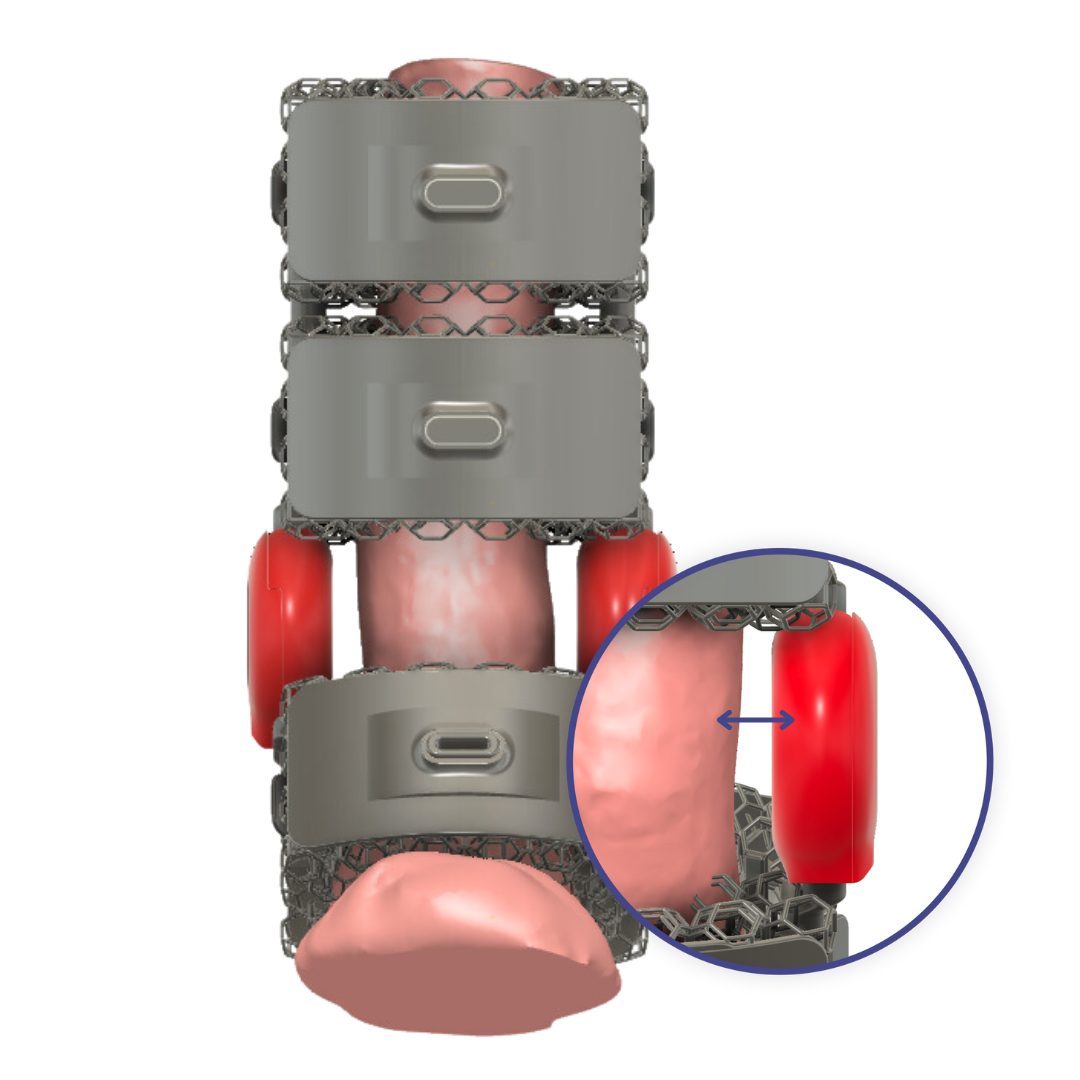

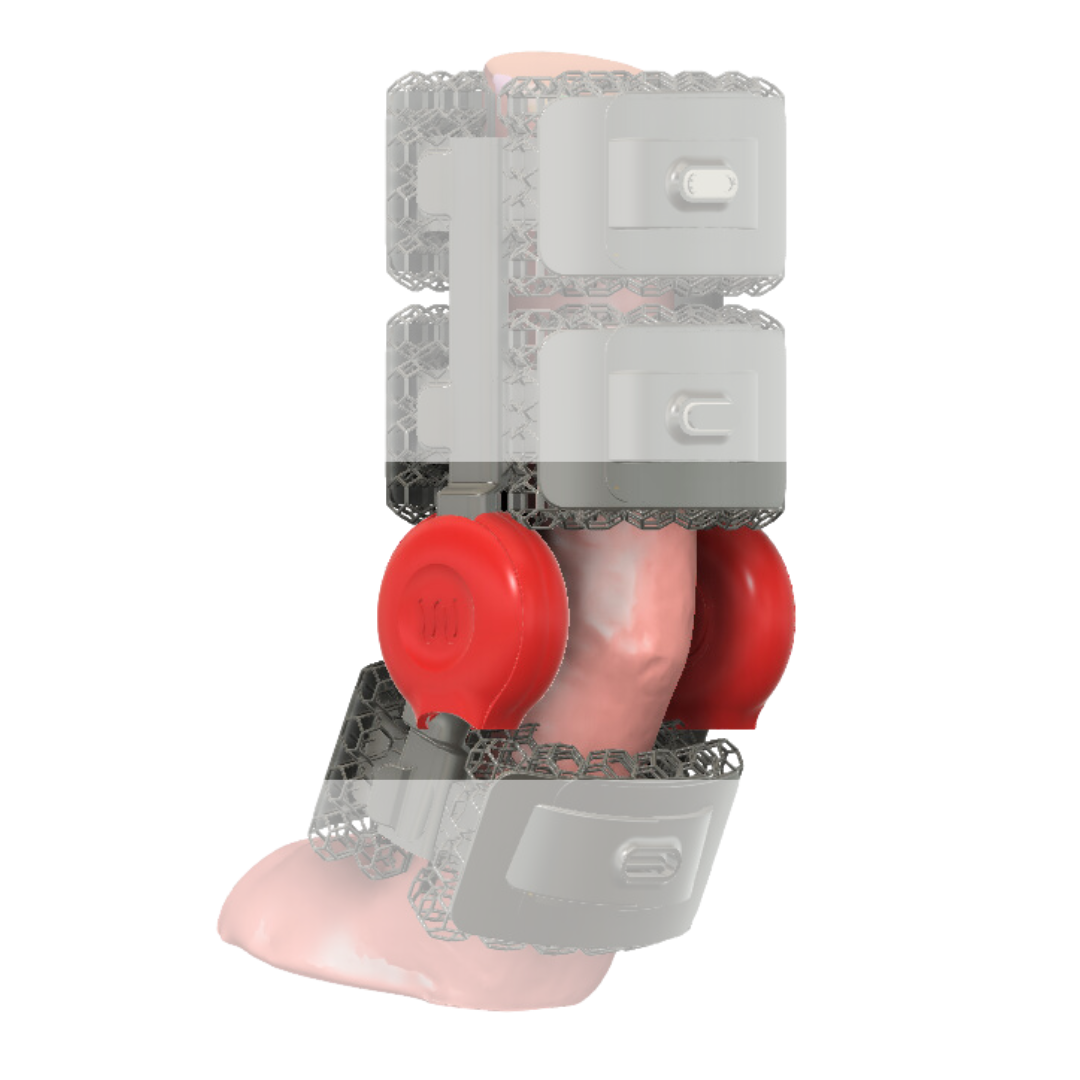

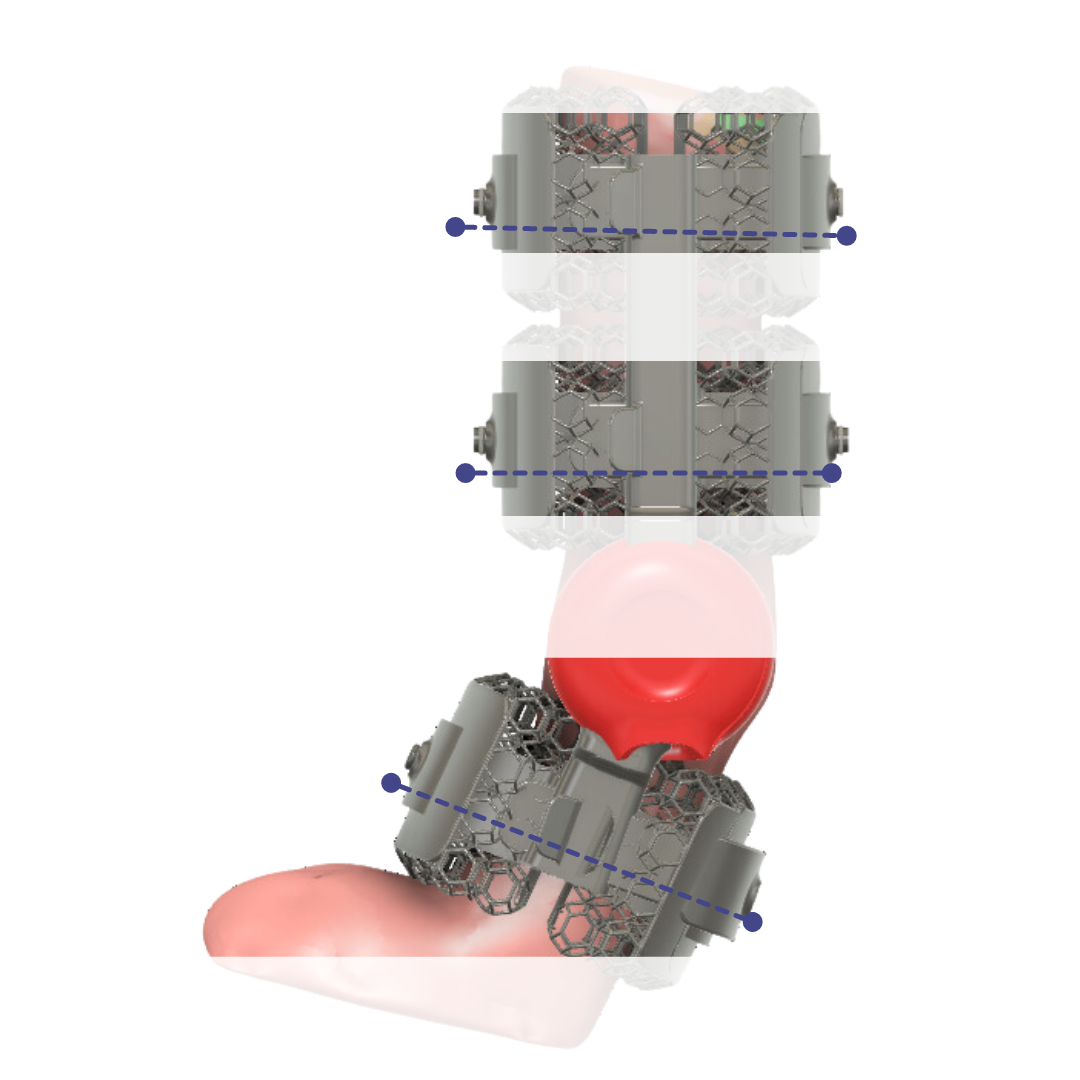

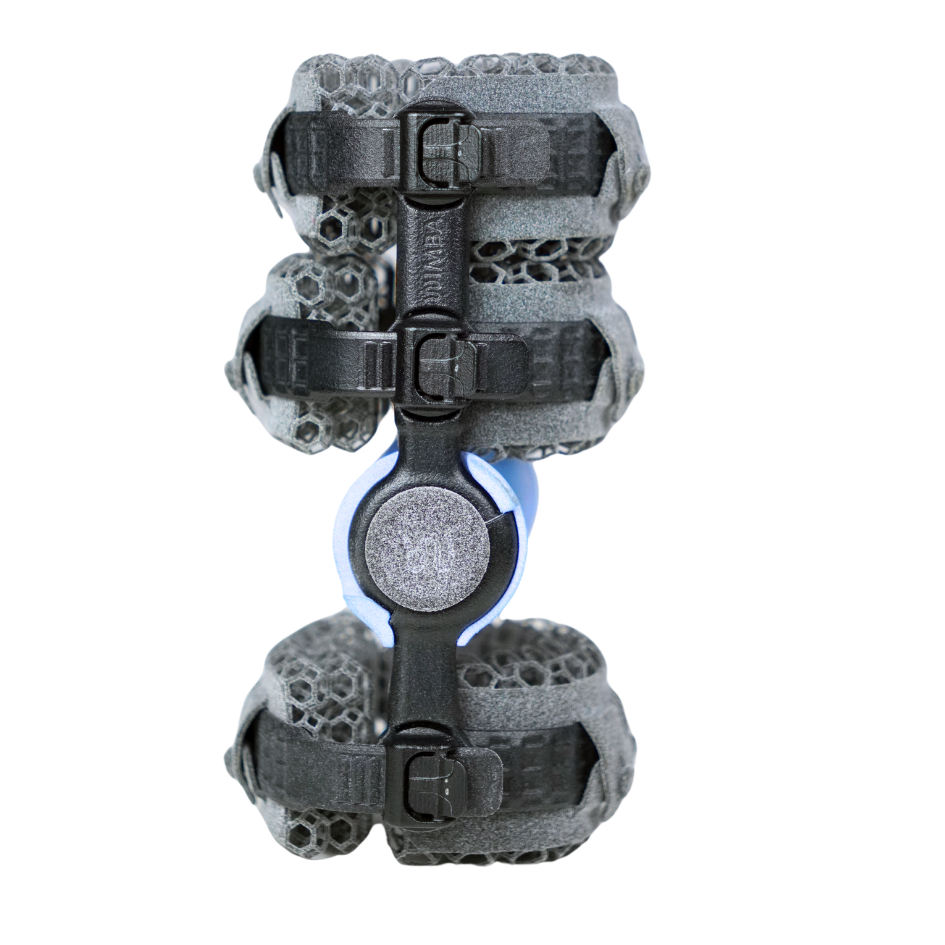

The correct fitting of the orthosis is in the illustration below. Pay attention to:



The token must not be too close to the leg

If the strap is fastened on both sides it should be fastened evenly on one and the other side of the orthosis

The token must be at the joint height



Recommended Use and Application

  1. WIMBA orthosis is a medical device and should be used solely at the discretion of a veterinarian or physiotherapist.
  2. During the first week of use, the orthosis should be worn for up to fifteen minutes while walking, a maximum of three times a day. Subsequently, increase the wearing time every two days by fifteen minutes. The time frame may vary depending on the case and the dog's behaviour. We recommend reading the behavioural guide.
  3. While using the orthosis, the dog must be under constant surveillance of the owner.

Recommended Wear Schedule

DAY

TIME

FREQUENCY

1

15 Minutes

Up to 3 times a day

2

15 Minutes

Up to 3 times a day

3

30 Minutes

Up to 3 times a day

4

30 Minutes

Up to 3 times a day

5

45 Minutes

Up to 3 times a day

Please remember!

The veterinarian or physiotherapist should guide the animal throughout the entire course of treatment period. It is recommended that wearing schedules ONLY be modified by the veterinarian or therapist to meet therapeutic goals.

WIMBA orthosis should never be used for 24 hours a day!

While using the orthosis, the dog must be under constant surveillance of the owner.

Do’s and Don'ts of Your WIMBA Orthosis:

  1. DO rinse WIMBA orthosis of any chemicals such as salt water, chlorine, sand, soil and mud after daily activities. When drying remove any excess water from orthosis to avoid the growth of bacteria and fungi.
  2. DO clean and hand dry your orthosis.

  3. DO NOT wash orthosis in a washing machine or use a hair dryer to dry orthosis.
  4. DO NOT heat or modify the orthosis in any way that could alter the structural integrity of the orthosis.
  5. DO NOT allow prolonged exposure of orthosis to low and high temperatures.  Failure to do so could result in brace not functioning properly due to material deformation

  6. DO NOT USE  on abrasions or other skin injuries.
  7. DO NOT allow your pet to bite the orthosis. It is necessary to monitor the dog while using the orthosis and not to leave the dog alone with the orthosis.
  8. DO NOT modify the structure of the orthosis.
